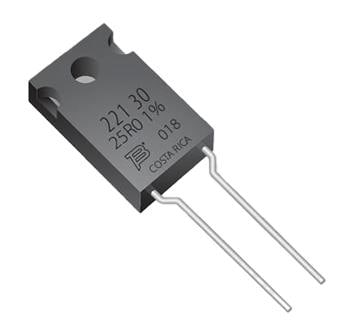

Bourns PWR221T-30-2000J Power Resistors Thick Film Resistor - Through Hole 200 kohm 5% AEC-Q200
Manufacturer: Bourns Model: PWR221T-30-2000J - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 3.18 mm
Height: 16.26 mm
Length: 10.41 mm
Tolerance: 5 %
Resistance: 200 Ohms
Technology: Thick Film
Unit Weight: 1.360 g
Lead Spacing: 5.08 mm
Power Rating: 30 W
Qualification: AEC-Q200
Mounting Style: PCB Mount
Voltage Rating: 2 kV
Termination Style: Radial
Temperature Coefficient: 100 PPM / C
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
