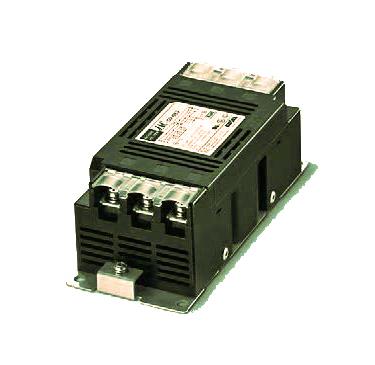

Cosel JAC-40-683 Power Line Filters 40A 500VAC 0.068uF EMI-EMC Filter
Manufacturer: Cosel Model: JAC-40-683 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 65 mm
Height: 54 mm
Length: 153 mm
Approvals: CSA, EN60939, ENEC, UL60939
Capacitance: 0.068 uF
Filter Type: 3-Phase EMI/EMC Filter
Unit Weight: 800 g
Current Rating: 40 A
Mounting Style: Chassis Mount
Voltage Rating: 500 VAC
Leakage Current: 5 mA
Termination Style: Screw
Operating Frequency: 50 Hz, 60 Hz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
