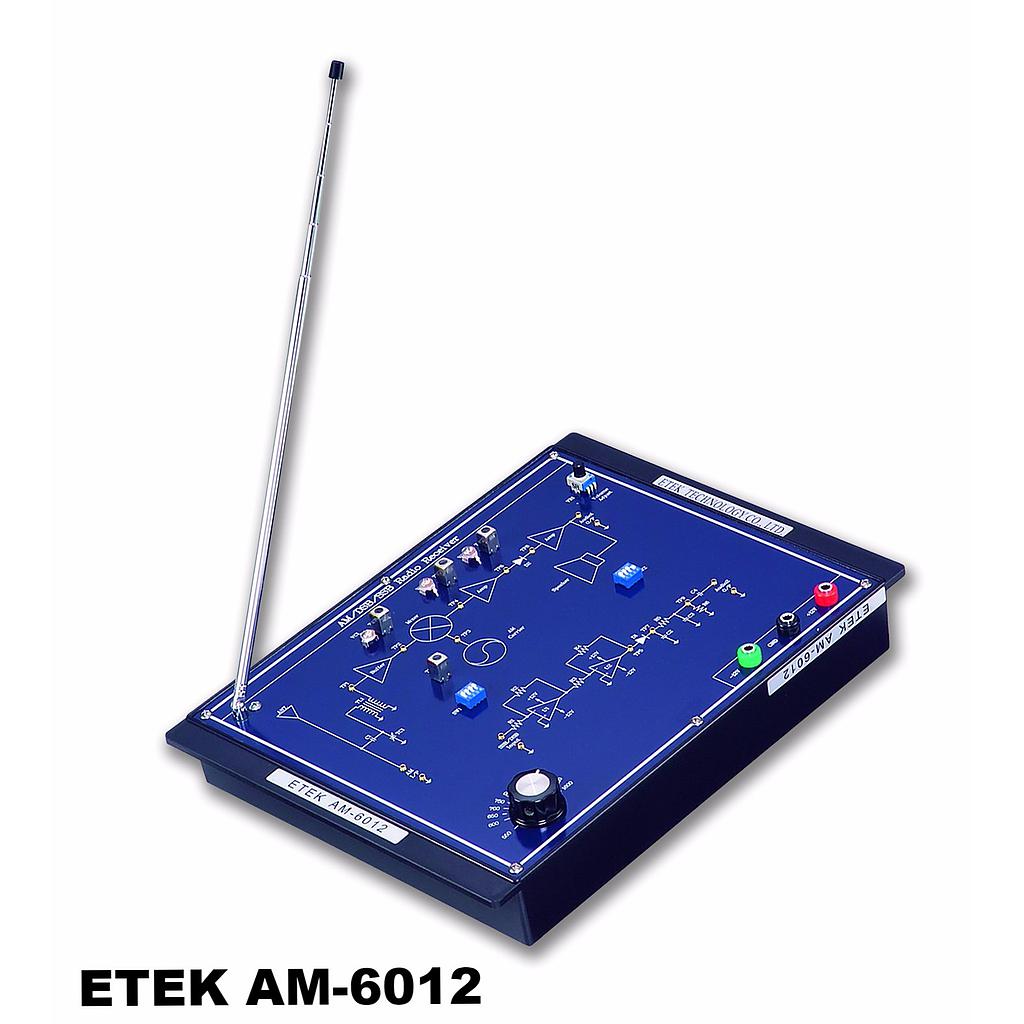

ETEK AM-6011/12 AM/DSB/SSB Transceiver Modules (1 MHz (AM), 4 MHz (SSB), 4,5 MHz (DSB))
Manufacturer: ETEK Model: AM-6011/12 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940

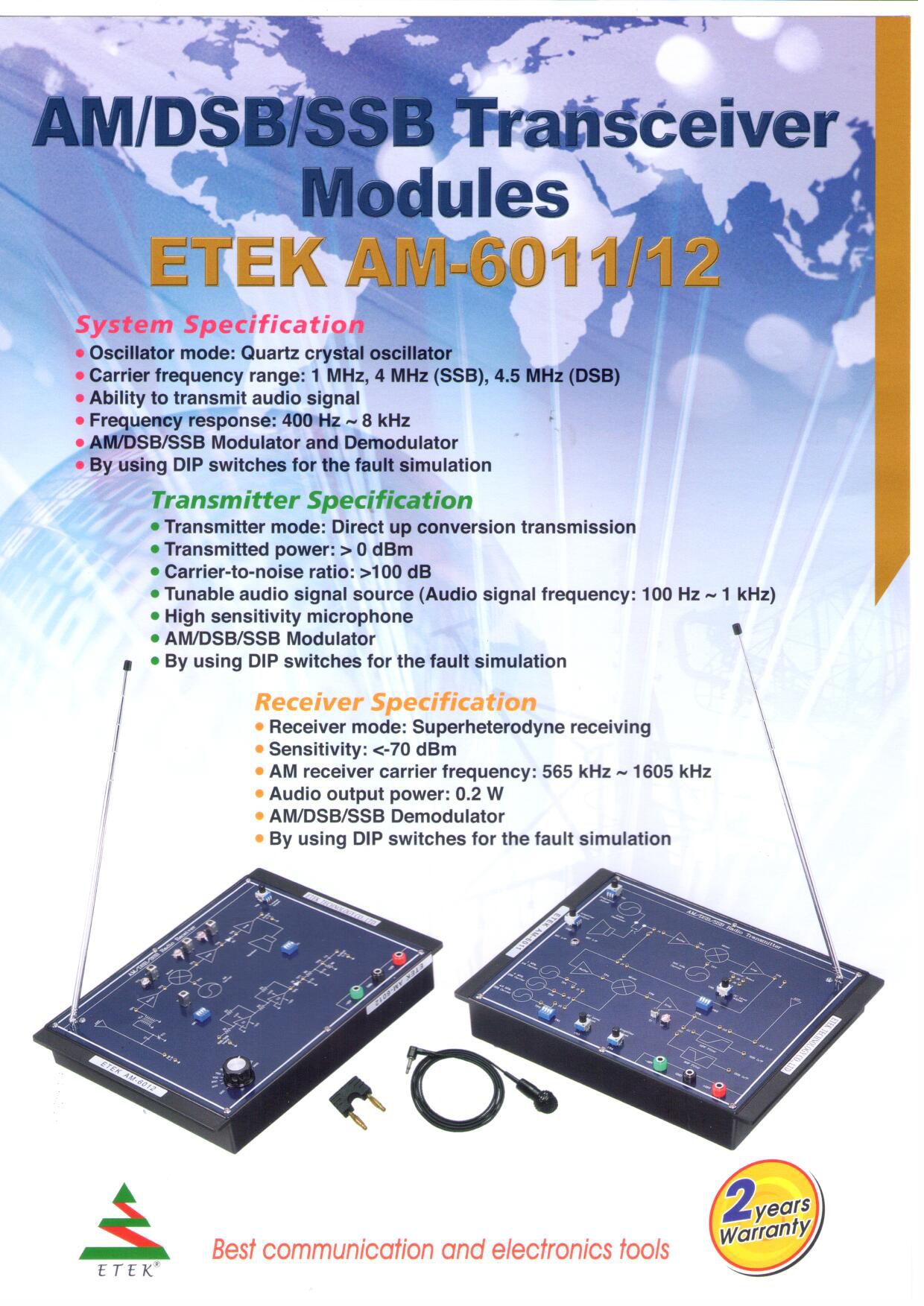

System Specification
1. Oscillator mode: Quartz crystal oscillator
2. Carrier frequency range: 1 MHz (AM), 4 MHz (SSB), 4.5 MHz (DSB)
3. Ability to transmit audio signal
4. Dynamic range:＞70 dBm.
5. Frequency response: 400 Hz ~ 8 kHz
6. AM/DSB/SSB Modulator and Demodulator
7. By using DIP switches for the fault simulation
Transmitter Specification
1. Transmitter mode: Direct up conversion transmission
2. Transmitted power:＞ 0 dBm
3. Carrier-to-noise ratio:＞ 100 dBm
4. Tunable audio signal source (Audio signal frequency: 100 Hz ~ 1 kHz)
5. High sensitivity microphone
6. AM/DSB/SSB Modulator
7. By using DIP switches for the fault simulation
Stereo Receiver Specification
1. Receiver mode: Superheterodyne receiving
2. Sensitivity: ＜-70 dBm
3. AM receiver carrier frequency: 565 kHz ~ 1605 kHz
4. Audio output power: 0.2 W (200 mW)
5. AM/DSB/SSB Demodulator
6. By using DIP switches for the fault simulation
