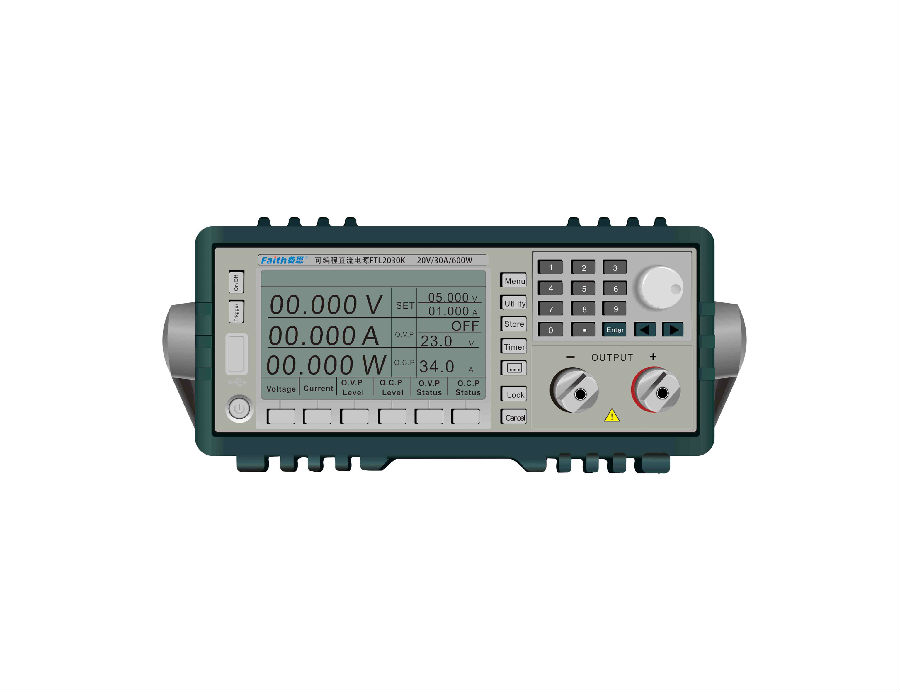

Faith FTL2030K High Precision DC Power Supply (20V/30A/600W)

Specification: 20V/30A/600W

Voltage resolution: 1mV

Current resolution: 1mA

Redundant output range: 20.5V/30.5A/600W

CV mode

Source effect: ≤ 0.01 %+ 4mV

Load effect: ≤ 0.1 %+ 5mV

Recover time: ≤1.5 ms (50% load change)

Ripple nosie: 2mVrms, 30mVpp

Temperature coefficient: ≤ 100 ppm / ℃

Design accuracy: ±(0.03% of reading+10mV)(25±5℃)

Design resolution: 1mV

CC mode

Source effect: ≤0.1%+ 3 mA

Load effect: ≤ 0.1%+ 5 mA

Ripple noise: ≤10mArms

Design accuracy: ±(0.1% of reading+0.1% F.S.)(25±5℃)

Design resolution: 1mA

Readback

Voltage: 5  digits display

Current: 5  digits display

Voltage resolution: 1mV

Current resolution: 1mA

Voltage accuracy: ±(0.02% of reading+5mV)(25±5℃)

Current accuracy: ±(0.1% of reading+0.1% of F.S.)(25±5℃)

Protection: OCP, OVP, OPP, OTP, reverse polarity protection, etc.

Keypad lock: Support

Interface: Standard RS232, support SCPI (optional analog control interface, RS485, LAN, MODBUS)

Storage & recall: 100 Groups

Input: AC220V±% , 50/60Hz

Size: 352 (D) × 215 (W) × 89 (H) mm

Weight: 4.5~5.5kg
