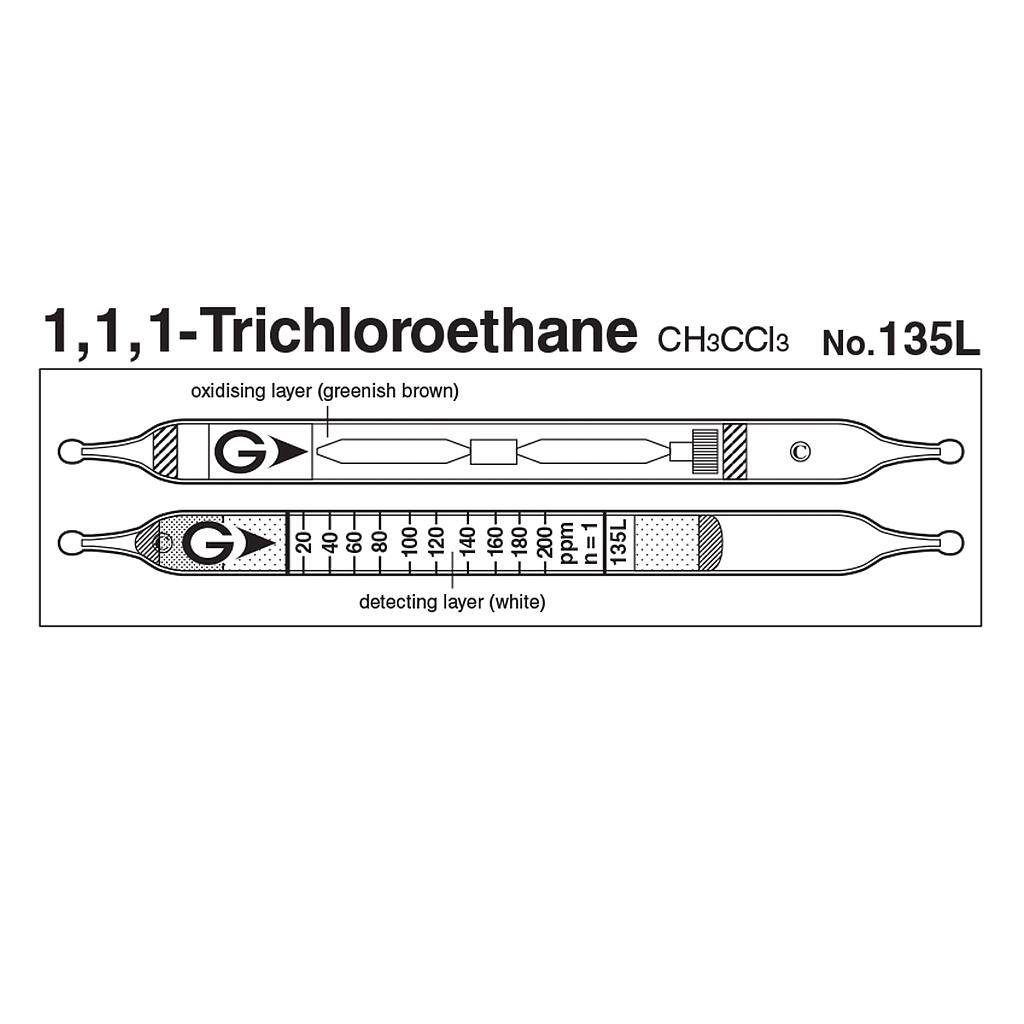

Gastec 135L Quick-measuring Detector tubes 1,1,1-Trichloroethane CH3CCl3 (6~900ppm)
Manufacturer: Gastec Model: 135L - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Indicator: 20 to 200 ppm
Measuring Range:
+ 6 to 20 ppm, Number of Pump Strokes 2
+ 20 to 200 ppm, Number of Pump Strokes 1
+ 200 to 900 ppm, Number of Pump Strokes 1/2
Sampling Time: 3 minute per pump stroke
Colour Change: White → Pale Pink
Coefficient of Variation: 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm)
Nr. of tests: 5
Pump: GV-100S/110S
Measuring Range |
|
|||
Number of Pump Strokes |
|
|||
Correction Factor |
|
|||
Sampling Time | 3 minutes per pump stroke | |||
Detecting Limit | 3 ppm (n=2) | |||
Colour Change | White → Pale Pink | |||
Reaction Principle | 1,1,1-Trichloroethane reacts with oxidizing agent to produce intermediate products then it reacts with detecting agent to produce pale pink stain. | |||
Coefficient of Variation | 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm) | |||
Shelf Life | 2 Years | |||
Corrections for temperature & humidity | Temperature correction is necessary | |||
Store the tubes at cool and dark place. |
Substance | Concentration | Interference | Change colour by itself to |
Halogens | + | Pale pink | |
Nitrogen oxides | + | Pale pink | |
Saturated halogenated hydrocarbons | + | Pale pink |
Substance | Correction Factor | No. of pump strokes | Measuring Range |
1,2-Dichloroethane | 5.2 | 1 | 104 to 1040 ppm |
1,1,2,2-Tetrabromoethane | 0.046 | 4 | 0.92 to 9.2 ppm |
1,2,3-Trichloropropane | 1.8 | 4 | 36 to 360 ppm |
Calibration gas generation | Diffusion tube method |
TLV-TWA | TLV-STEL | Explosive range |
350 ppm | 450 ppm | - |
