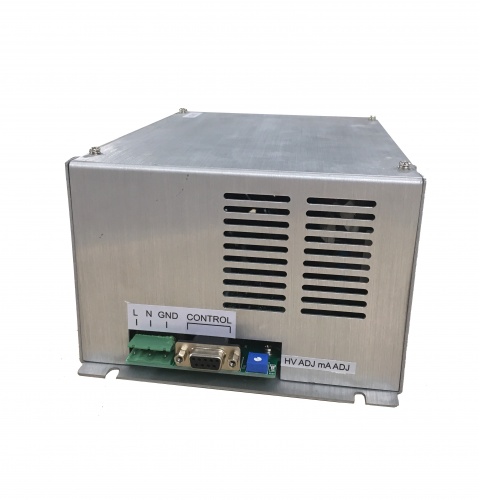

Genvolt AF06 High Voltage Power Supply (600W,800W,1000W)

  • Manufacturer: Genvolt
    Model: AF06
    Origin: United Kingdom
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Genvolt

Model: AF06

Origin: UK

Warranty: 12 months



Input voltage: 220VAC (200VAC - 240VAC)

Input current: Less than 6A

Output voltage range: 10kV to 60kV

Power range: 600W, 800W and 1000W

Output polarity: Positive or negative. Please specify when ordering.

Line regulation: Less than 0.5%

Load regulation: Less than 0.5%

Voltage ripple: Less than 1% at full load.

Temperature drift: 300ppm/°C maximum when operating under 55°C.

Operating temperature: -10°C to 50°C

Storage temperature: -20°C to 80°C

Voltage range: 10-20kV 30-40kV 50-60kV

Width: 160mm 180mm 180mm

Height: 105mm 136mm 155mm

Depth: 268mm 310mm 340mm

HV output connector: On one side of the power supply Mounted on the back panel Mounted on the back panel

Control interface connector: 9 way D type female connector (Optional: 10 way IDC connector)

Power input connector: Standard 3 way PCB terminal socket & plug 7.62mm pitch.
