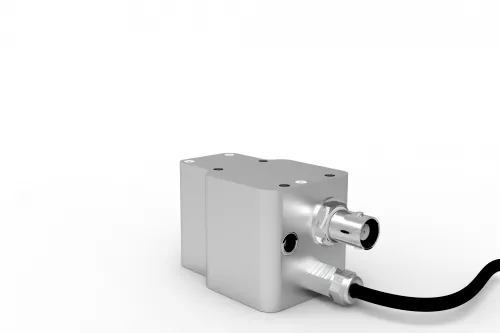

Gigahertz-Optik ISD-1.6-SP-V0x-2 Detector head for the measurment of radiant flux (W) (5 mm aperture)

-Measurement ranges: Peak power up to typ. 200 W (fast photodiode, pulsed), typ. 100 W (slow photodiode for absolute measurement), spectral sensitivity range 400 nm to 1100 nm.

-Calibration: Factory calibration of the spectral sensitivity of the photodiode for radiant power. Traceable to PTB calibration standards

-Port Size:

V0x: 5 mm

-max. Radiant Power (Peak)

fast photodiode: V0x: typically 200 W (@ 950 nm, pulsed)

-Max. signal current: 1 mA (photodiode used for absolute measurement)

-Typical responsivity:

V0x: 8.4 µA/W @900 nm

(slow photodiode)

-Spectral range: (400 - 1100) nm

-Rise time:

photodiode for puls-shape measurement: <1 ns

photodiode for absolute signal: 100 ns

-Weight: 200 g

-Temperature range:

Application: (10 to 30)°C

Storage: (-10 to 50)°C

-Humidity: The device must not be exposed to high humidity. Range 20% ~ 70% RH not condensing.
