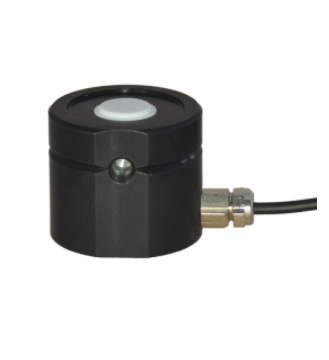

Gigahertz-Optik RW-3703-1 High Sensitivity Broadband Irradiance Detector (BNC connector)

Spectral responsivity: radiometric (400 - 800) nm

Typical responsivity: 1.5 nA/(W/m²)

Max. signal current: 1 mA

Input optics: 11 mm Ø diffusor window

Input optics: Cosine F.O.V.

Housing: 37 mm Ø, 32 mm height

Mounting: side M6 thread hole

Connector: coaxial cable 2 m Long, with BNC connector (-1)

Temperature range: 5 - 40°C

min. signal current: depends on optometer

Rise time: 150 ns

Measurement ranges:

min (0.1 pA NEI): 6.67E-05 W/m²

max (200 µA): 1.33E+05 W/m²

max (1 mA): 6.67E+05 W/m²
