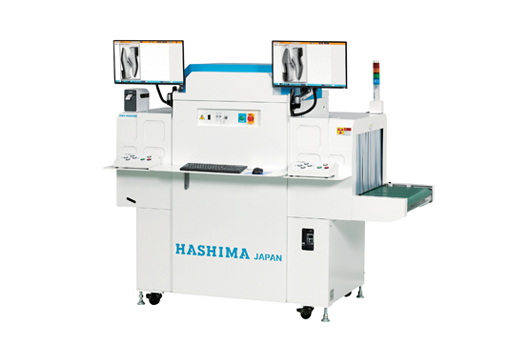

HASHIMA HNX-S665N X-ray inspection machine ( 0°)

X-ray angle: 0° only 0° 25°(Dual Direction)

Tunnel size: 690(W)×420(H)mm

Belt width: 648mm

Belt speed: Adjustable Belt Speed 15~25m/min

Object weight: Max 5kg

X-ray sensor: Straight Type Line Sensor

Sensor length: 665.6mm

Sensor pixel size: 0.4mm

Sensor pixel number: 1664pixels

X-ray Tube Voltage: 30~75kV

X-ray Tube Current: 0~3mA

OS: Windows10(64bit)

Memory: 8GB


Image Processing: Brightness, Contrast, Sharpness, Zoom

Data Saving: Automatic or Manual Saving

Data Format: TIFF/BMP/JPEG (Plurally Selectable)

Display: 23.8inch Full Definitions×2 (Plurally Selectable)

Image Data Print: Automatic or Manual Printing

Safety Sensor: Hand Insertion Sensor

Dimensions: 2130(W)×940(D)×1735(H)mm

Weight 800kg

Power Supply AC90~120V 50/60Hz

Power Consumption: 0.8KVA

X-ray Leakage: 1μSV/h or less

Operating Temperature: 5~35℃

Operating Humidity: 20~80%RH (No condensation)

Standard Accessories: Instruction Manual, Test Piece

Option: Touch Panel, PC Printer (Selectable), label Printer, Roller Conveyor, Electric Conveyor (Put/Carry Out), Monitor Stand, Putting Guide, UPS, Barcode Reader
