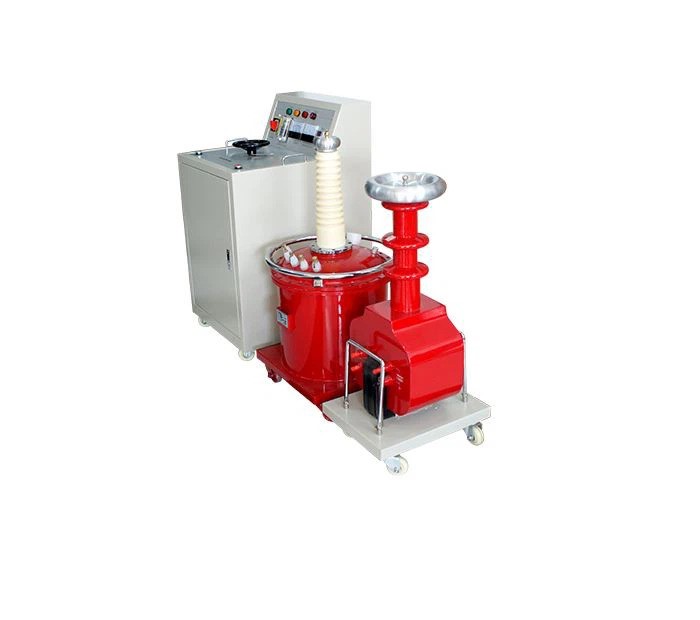

Huazheng HZG-20KVA/50KV Dry-Type AC High Voltage Testing Equipment
Manufacturer: Huazheng Model: HZG-20KVA/50KV - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
1. Impedance voltage: 4.5%-8%
2. Surface temperature rise: sine wave
3. Idle load loss consumption: 0.2%-0.35%
4. Allowable continuous operation time: 2 hours
5. Interrupted operation time: continuous
Capacity(KVA): 20
Input voltage(V): 200 (400)
Output voltage(KV): 50
Output current(mA): 400
Output DC high voltage(KV): 70
Max. External dimension(mm): 470x370x750
Weight(kg): 85
