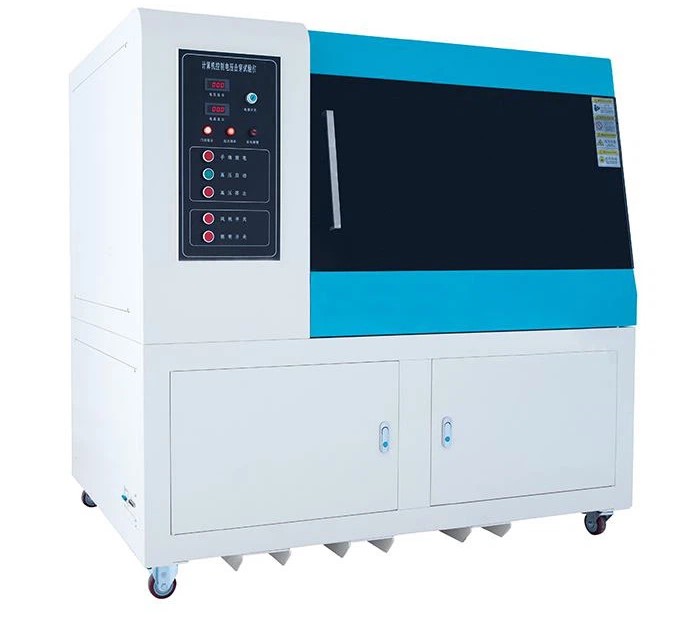

Huazheng HZGJC - 20KV Computer Controlled ASTM D149 Voltage Breakdown Tester

Input voltage: 220V 50HZ

Voltage measurement range: AC/DC 0-2 0 KV

Electrical capacity (power): 2 KVA

Overcurrent protection: 1-30 mA can be set freely by computer software

Boost rate: 0.1 KV/s -3 KV/s adjustable without division

Testable way: AC/DC test: 1. Uniform speed boost 2. Step boost 3. Withstand voltage test

AC and DC voltage measurement error: 1 .5%≤ (10~100)%

Withstand voltage time: 0~4 H (German standard 8 H or 15 H ) or set arbitrarily

Instrument size (length, width and height): 900*500*1100mm

Host re- appointment: 260kg
