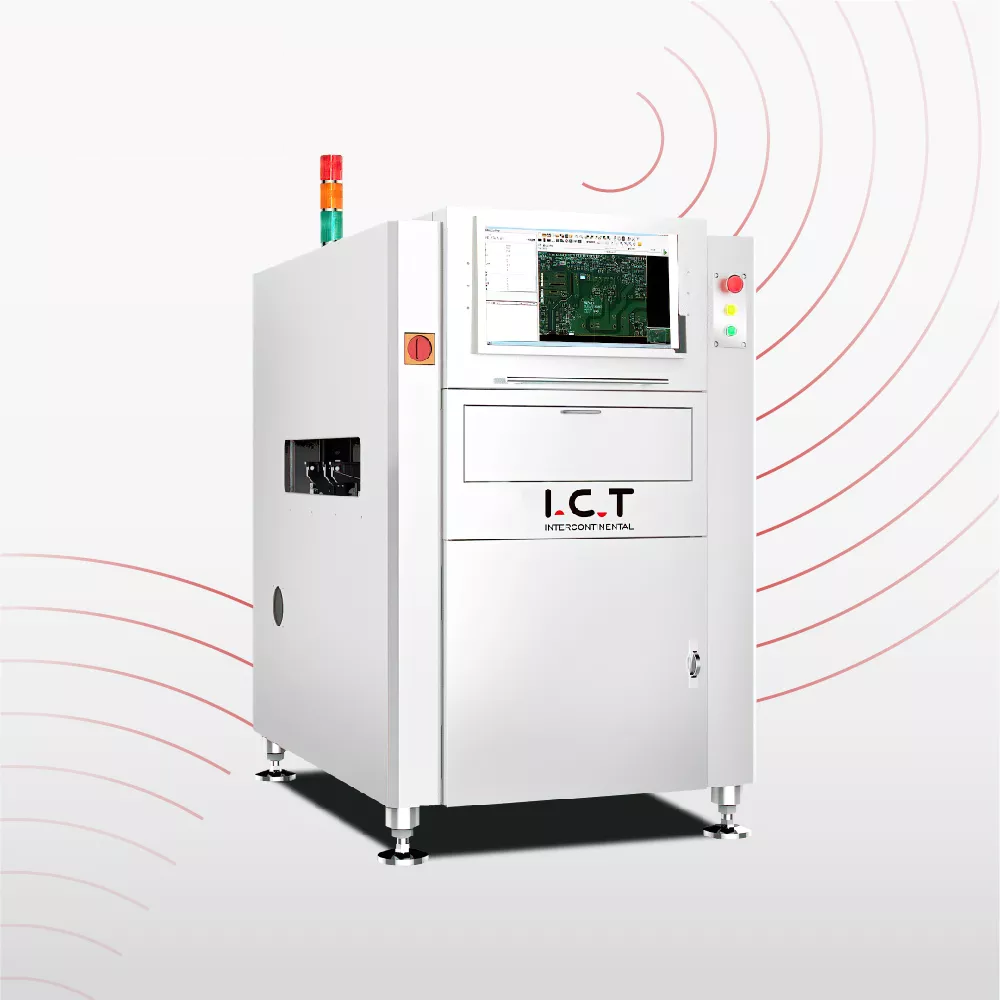

I.C.T I.C.T-V8XL Off-line Automated Optical Inspection AOI Machine (5M pixel, 50*50~650*510mm)
Manufacturer: I.C.T Model: I.C.T-V8XL - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
FOV: 15u(38.4*28.8mm)
Camera: 5M pixel intelligent digital industrial camera
Lens: Telecentric lens
Light: 4 color ring LED light,RGB+W
Inspection Item: Component test,soldering test
Mini Component: 03015chip,0.3pitch IC and Special shaped
Operation System: Windows 7
PCB Size: 50*50~650*510mm
PCB Thickness: 0.3 ~ 6.0mm
PCB Warpage: ±3.0mm
PCB Weight: Max:10Kg
PCB Height: Top:25-60mm,Bottom:25-80mm adjustable
X/Y Driver: AC servo driver,repeat accuracy 0.01mm
Platform: Granite
Power: AC220 50/60Hz,2.5A
Communication: SMEMA
Weight: 600Kg
Dimension: 1080*1470*1370mm(excluding the light)
