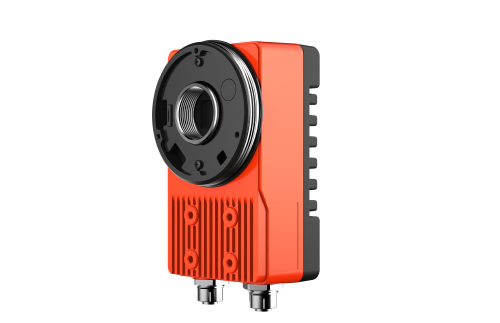

iRAYPLE R7250MG-00C-NGG01E Code Reader (5120 × 5104; 90 codes/s)
Manufacturer: iRAYPLE Model: R7250MG-00C-NGG01E - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Basic
Resolution: 5120 × 5104
Max. Frame rate: 12 fps
Sensor Type: 1.1"，CMOS
Shutter Mode: Global
Lens Mount: C-MOUNT
Trigger Mode: Software trigger/External trigger/Free run modes
Software: EasyID
Certifications: CE，KC
Function: lD: Code 39，Code 93，Code 128，CodaBar，EAN8，EAN13，UPCA，UPCE，ITF25，2of5（Industrial 2of5），standard25，GS1-128 etc. and 2D: QR/DM/MQR/GS1 DM/GS1 QR; Quality Evaluation: 1S0/IEC 29158(AIM-DPM), 1S0/IEC 15415, 1S0/IEC 15416
Performance
Max. Read Speed: 90 codes/s
Port
Connector: 2 Industrial connectors support GigE and GPIO
Network Port: Code-A,GigE
GPIO Interface: 12Pins GPIO，RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Communication Mode: RS232, Ethernet
Communication protocol: SDK，TCP Client，FTP，TCP Server，RS232，Profinet、Modbus、EtherNet/IP、MCUdp、MCTcp、FinsUDP、FinsTCP、MELSEC
LED Indicator: Power,Ethernet,Trigger
Power
Power Supply: 24VDC, 1A input, suitable for industrial environment
Power Consumption: <8.0W@DC24V (light not included)
Structure
Product Dimensions: 117 mm × 69 mm × 43 mm(lens mount & connector not included)
Net Weight: ＜550 g
Protection: IP67 (with lens cover)
Casing Material: Aluminum alloy
Environment
Operating Temperature: -20℃～+50℃
Operating Humidity: 20%～95%, no condensation
Storage Temperature: -30℃～+70℃
