Home EC/TDS Sensors Jumo BlackLine CR 4P Conductive 4-electrode conductivity sensor (1µS/cm ~ 300ms/cm)

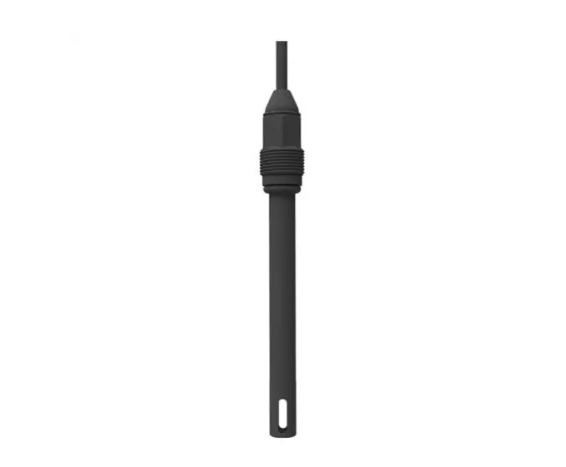

Jumo BlackLine CR 4P Conductive 4-electrode conductivity sensor (1µS/cm ~ 300ms/cm)

Order code:  202931/10-1003-84-71-5000-120

Typical measuring range: 1 µS/cm to 300 ms/cm

Basic type extension: With internal temperature probe

Measuring insert: 1 × Pt100 in two-wire circuit

Electrode material: Special graphite

Connection: Screw head Pg 13.5 (S8), black, can be rotated

Cable length: 5000 mm

Insertion length: 120 mm

Details

The conductivity sensor has 4 electrodes made of robust special graphite and is characterized by a wide measuring range. It is therefore predestined for determining the conductivity of high salt concentrations. This is why it can be used in salt and sea water applications, among others.

Datasheet
