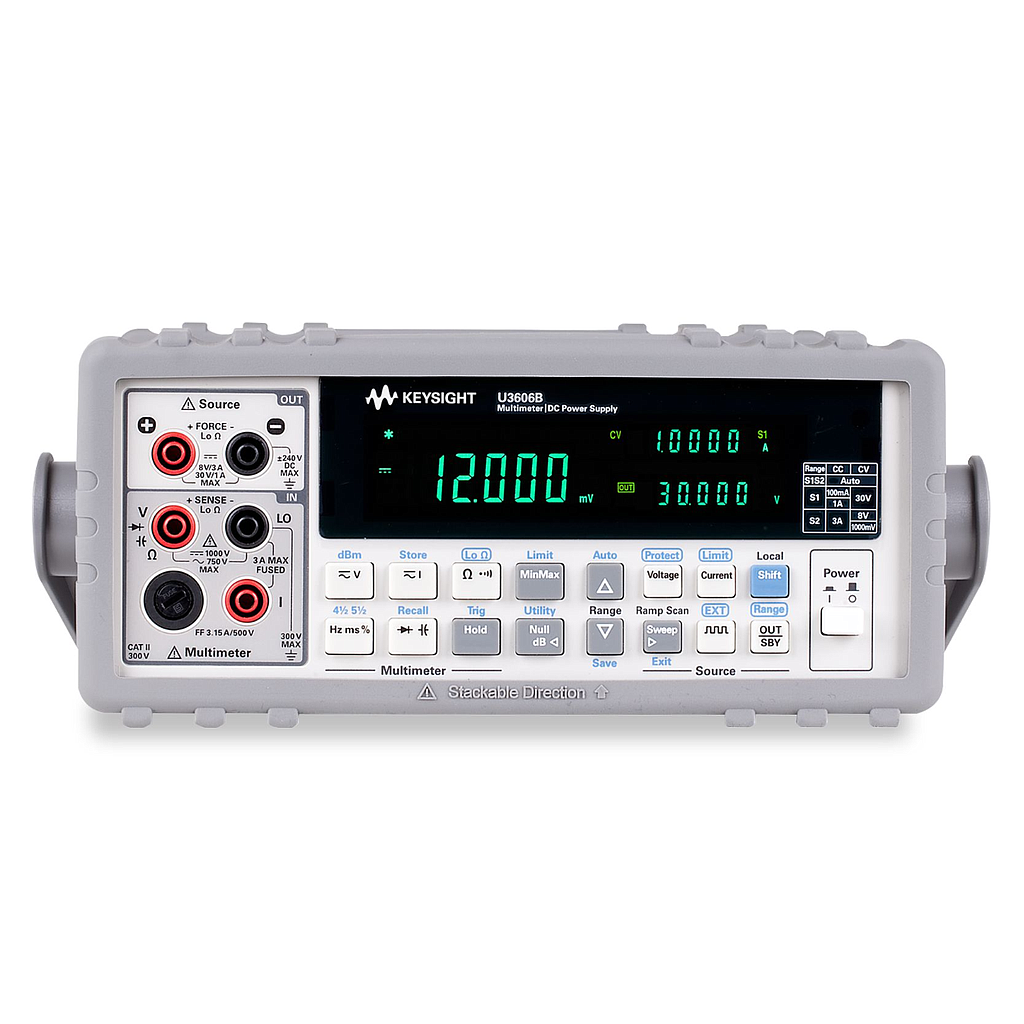

KEYSIGHT U3606B Multimeter - DC Power Supply
Manufacturer: KEYSIGHT Model: U3606B Origin: Malaysia Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
2 options: 5 ½ digit DMM & 30W DC supply
Reading Speed: 26 readings/s
Basic 1-Year DCV Accuracy: 0.025%
Measurement Functions: DCV and ACV; DCI and ACI; 2- and 4-wire Resistance; Frequency; Capacitance; Diode test
Connectivity: USB, GPIB
DC voltage ranges: 19.9999 mV; 100 mV; 1 V; 10 V; 100 V; 1000 V.
DC current ranges: 10mA; 100mA; 1A; 3A.
Resistance ranges: 100Ω; 1000Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ.
Low-resistance: 100 mΩ; 1000 mΩ; 10 Ω; 100 Ω; 1000 Ω;
Diode: 1.0000 V
Capacitance ranges: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1000 µF; 10000 µF
True rms AC voltage: 100mV, 1V to 750V
True rms AC current: 10mA to 3A
DC supply: 30 V/1 A, 100 mA/30 V, 8 V/3 A and 1000 mV/3 A
Excellent line/load regulation of up to 0.01%+3 mV
OVP and OCP load protection
Included accessories: USB cable, Power cord, IO Library, Quick guide, Calibration certificate, Product reference CD.
