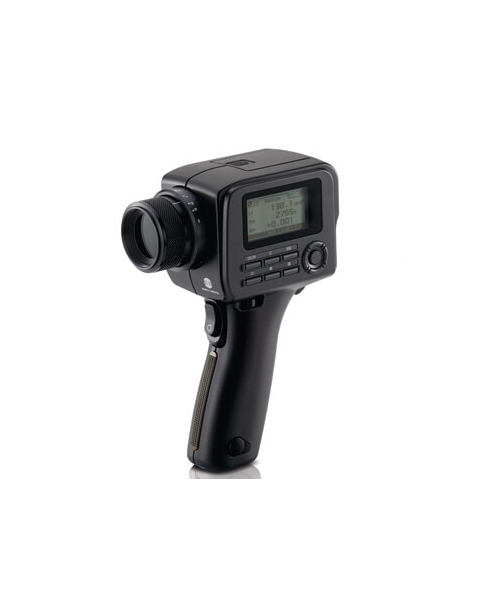

KONICA MINOLTA CS-150 Chroma Meter (0.01 ~ 999,900 cd/m²)

Measuring angle: 1°

Optical system: SLR viewing system, f = 85 mm F2.8

Angle of view: 9° (with diopter adjustment)

Relative spectral responsivity: Closely matches CIE 1931 color matching function (x (λ), y (λ), z (λ))

Minimum measuring area(diameter): 14.4 mm (1.3 mm when close-up lens is used)

Minimum measuring distance (From the measuring distance reference plane): 1.012 mm. (213 mm when close-up lens is used)

Color notations.: (Absolute value) Lv, x, y (Y, x, y), Lv, u', v', Lv, Tcp, duv, XYZ, Lv. λd, Pe

Measurement mode:

(Luminance) Instantaneous value, maximum/minimum value, luminance difference (Δ)/luminance ratio (%)

(Chromaticity) Instantaneous value, chromaticity difference(Δ)

Measurement time: Auto: 0.7 to 4.3 seconds Manual: 0.7 to 7.1 seconds

Luminance unit: cd/m² or fL

Luminance range: 0.01 to 999,900 cd/m²

Accuracy: (Luminance) ±2% ± 1 digit (Chromaticity) ±0.004 (5 cd/m² or more)

Repeatability: (Luminance) 0.2% + 1 digit (Chromaticity)

0.001 ( 10cd/(m^2) or more)(Chromaticity)

0.002 ( 5cd/(m^2) or more

Calibration standard: Konica Minolta standard/user-specified standard switchable

User calibration channels: 10 channels

Data memory: 1,000 data

Interface: USB2.0

Power: AA-size batteries (x 2 ) USB bus power, or optional AC adapter

Current consumption: When viewfinder display is lit: 70 mA average

Operation temperature/humidity range: 0 to 40°C, relative humidity of 85% or less (at 35 deg * C )

Storage temperature/ humidity range: 0 to 45 deg * C relative humidity of 85% or less (at 35 deg * C )

Size: 71 * 214 * 154 mm

Weight: 850 g (without batteries)

Standard accessories

Lens Cap

Eyepiece ND Filter

Eyepiece Cap

AA-size batteries (x2)

Hard Case CS-A12

Wrist Strap CS-A13

USB Cable T-A15

Data Management Software CS-S20

Optional accessories

Close-Up Lens No. 153/135/122/110

CCD Camera Adapter CS-A14

Illuminance Adapter CS-A15

White Calibration Plate (for 45-0) CS-A20

AC Adapter AC-A305J/L/M
