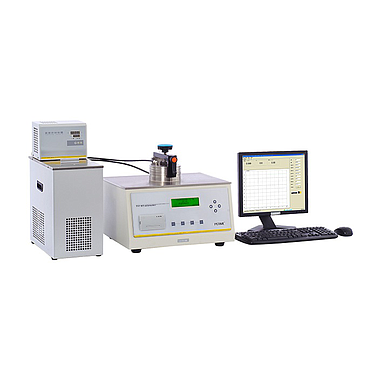

Labthink TSY-W3 Electrolytic Detection Method Water Vapor Permeability Tester (0.001 ~ 50 g/m2•24h)

  • Manufacturer: Labthink
    Model: TSY-W3
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Labthink

Model:  TSY-W3

Warranty: 12 months

Test Range:

0.001 ~ 50 g/m2•24h (standard)

0.01 ~ 1000 g/m2•24h (optional)

Number of Specimens: 1

Resolution: 0.1ppm

Temperature Range: 5°C ~ 95°C

Temperature Accuracy: ±0.1°C

Humidity Range: 0%RH, 2%RH ~ 98.5%RH, 100%RH (standard is 90%RH)

Accuracy: ±1%RH

Test Area: 38.48 cm2

Thickness: < 1 mm (accessories required for thicker specimens)

Specimen Size: Φ100 mm

Carrier Gas: 99.999% High Purity Nitrogen (outside of supply scope)

Gas Flow: 100 mL/min

Gas Supply Pressure: ≥ 0.12 MPas

Port Size: 1/8 inch copper tubing

Instrument Dimension: 500 mm (L) x 400 mm (W) x 360 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight: 36 kg
