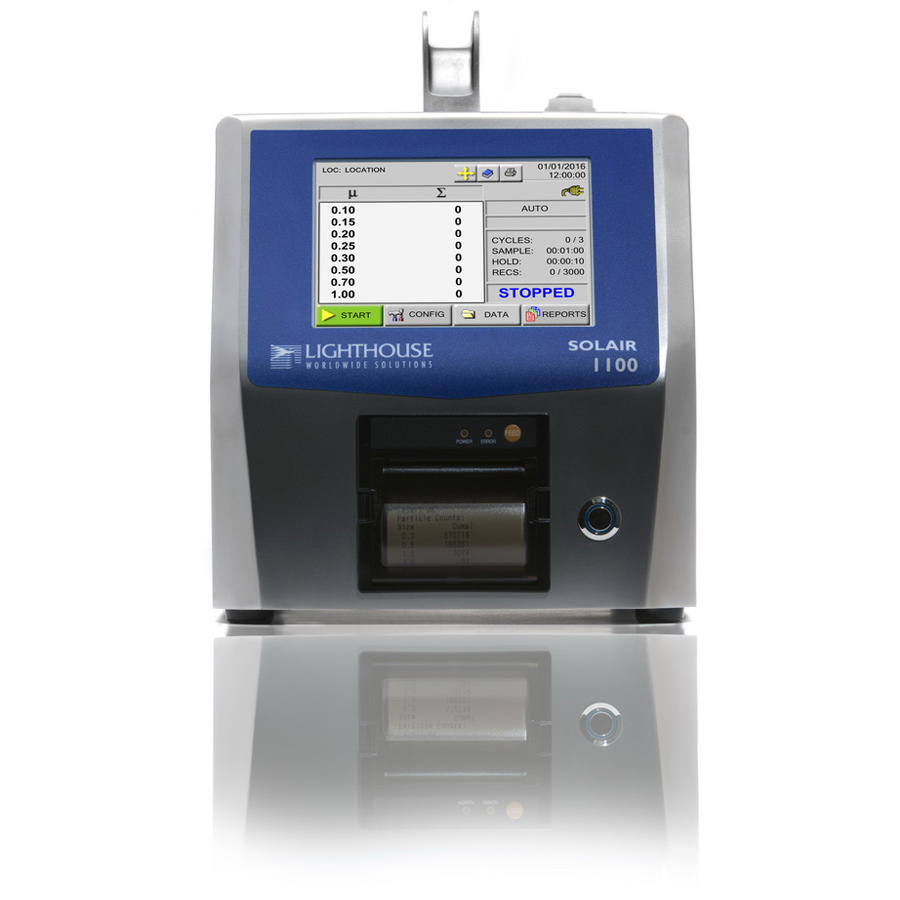

Lighthouse Solair 1100LD Airbone Particle Counter (0.1 µm – 5.0 µm, 1.0 CFM)

Minimum Size Detection: 0.1 µm

Standard 8 channel sizes: 0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0 µm

Additional Available size: 5.0 µm

Flow Rate / Nozzle Size: 1 CFM (28.3 LPM), 1/4” Inlet Barb

Weight: 23.35 lbs (10.6 kg)

Concentration Limits: 1,000,000 Particles/ft3@10% (35,300,000/m3) Coincidence loss

Communication: USB, Ethernet, RS-485, USB flash drive

Data Storage Records: 3,000 sample records, rotating buffer, particle and environmental data, location and time

Count Modes: Automatic, manual, beep, concentration, cumulative/differential, real-time with LMS software

Printer: Available with, and without internal printer

Reports: ISO 14644-1:2015, EU GMP Annex I

Alerts: Integrated adjustable alarm, external alarm connector, alarms on counts, low battery, and sensor failure

Enclosure: Stainless steel

Touch Screen Display: 5.7 inch (14.47 cm) color TFT touch screen display

Power: 100–240 VAC, 50–60 Hz external AC/DC adapter

Battery: Optional Li-ion removable rechargeable

Light Source: Life Diode

Calibration: ISO 21501-4 Compliant, Accredited ISO 17025

Zero Count Level: < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)

Sample Output: Internally filtered to HEPA standards (>99.97 @ 0.3 µm)

Vacuum Source: Internal closed-loop controlled pump

Languages: English (US), French, German, Spanish, Italian, Russian, Japanese, Korean, Chinese

Supporting Software: LMS Express, LMS Pharma, LMS Professional, LMS XChange

Includes: Isokinetic sample probe, tubing, purge filter, power cables, spare fuse, printer paper, Calibration Certificate
