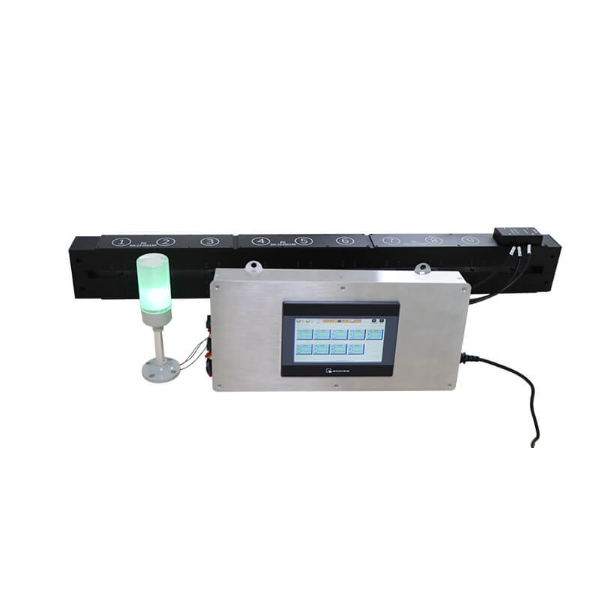

Linshang LS152 Vacuum Coating Thickness Measuring System
Manufacturer: Linshang Model: LS152 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Test wavelength (optional): Green light: 530nm; Infrared: 850nm
Measuring spot: 5mm
Transmittance measurement accuracy: ±1%
Transmittance resolution: 0.005%
Optical density measurement range: 0.00 OD - 5.00 OD
Optical density resolution:
0.01 OD for 0.00-3.00 OD
0.05 OD for 3.00-5.00 OD
Maximum measurement points: 45 points
Distance between adjacent probe: Minimum distance of 35mm
Distance between receiving probe and light source probe: 20mm
Temperature range: -10°C - 60°C
Storage temperature: -20°C - 70°C
Relative humidity: less than 85%, no condensation
Data refresh cycle: Normal mode 300ms/ Fast mode 100ms
Communication interface: Dual RS485
Communication protocol: MODBUS protocol
Dimension: 80mm(W)*180mm(H)*L (Customized)
Vacuum flange electrode cores:
6 (RS485+DC7.5V)
9 (RS485+ RS485+DC7.5V)
Power supply: 220V 0.2A AC/50Hz
