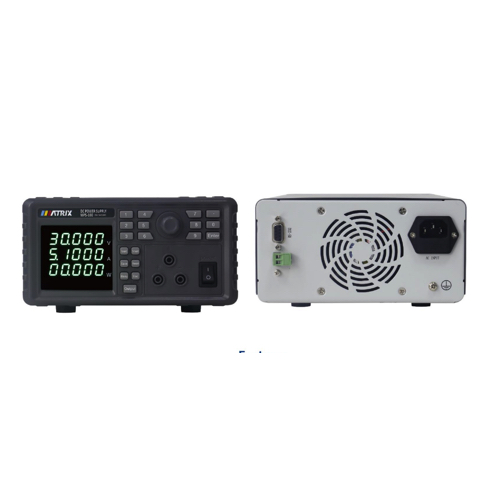

MATRIX MPS-100C Single Channel DC Power Supply (30V, 5A, 150W, RS-232+RS-485)
Manufacturer: MATRIX Model: MPS-100C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Rated input voltage: AC220V±10% or 110V±10%
Rated output voltage: 0~30V
Rated output current: 0~5A
Rated output power: 150W
Load regulation rate: Voltage 0.05%+8mV, Current 0.1%+5mA
Power regulation rate: Voltage 0.05%+8mV, Current 0.1%+5mA
Setting resolution: Voltage 1mV, Current 0.1mA
Read back resolution: Voltage 1mV, Current 0.1mA
Setting accuracy (25°C±5°C): Voltage ≤0.1%+8mV, Current ≤0.2%+2mA
Read back accuracy (25°C±5°C): Voltage ≤0.1%+8mV, Current ≤0.2%+2mA
Ripple and noise (25°C±5°C): Voltage <5mVrms, Current <3mArms
Temperature coefficient: Voltage 0 to 40°C ≤85% R.H., Current -15 to 70°C ≤85% R.H.
Machine size (WxHxD): 185x105x295 mm
Net weight: 4.5Kg
Datasheet
Catalogue
Features
• Voltage compensation function to ensure high accuracy
• Nine sets of voltage and current storage function, convenient and quick
• Intelligent temperature control fan, extremely practical
• It can save the output status and value before the last shutdown The adjustable range of current and voltage can be set
• Restore factory settings with one click
• Adjustable screen brightness
• LIST output editing function
Applications
■ Prouduction line work bench routine test
■ Lab and institute
■ Electronic repair
■ Automated equipment integration testing
