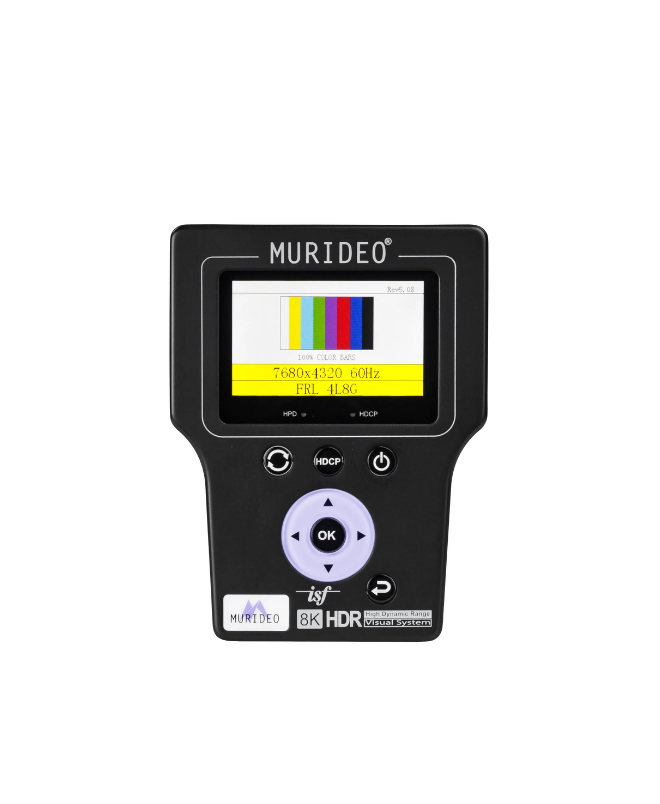

MURIDEO MU-GEN-SIX-G-8K HDMI Signal Generator

Video:

Hdmi version: hdmi 2.1 (frl5 40gbps)

Hdcp version: hdcp 2.3 and 1.4

Hdcp on/off: yes

Maximum clock rate: 600 mcsc (594 mhz)

Maximum throughput per channel: 10.0 gbits/sec (40 gbp/sec total)

Resolution timings: vesa; video standard with 60, 59.94, 30, 29.97, 24, 23.98, fps; video standard with 50, 25 fps; auto and 10 user definded

Video encoding: rgb, ycbcr

Video sampling models: rgb 4:4:4, yuv 4:4:4, yuv 4:2:2, yuv 4:2:0 hdmi 2.0

Color bit depth: 8, 10, 12, 16, and auto edid read

Patterns: over 80 built in including isf geometery, isf resolution, isf pluge, colors, focus, resolution, bars, ramps, multiburst, black/white and moving bars.

Audio:

Audio channels: up to 8 (7.1)

Audio output: 2 ch lpcm

Vu meter channels: up to 8 (7.1)

Ports:

Hdmi: type a

Audio (l/r input): 3.5mm stereo (3-conductor)

Sync (sync & latency test): 3.5mm stereo (3-conductor)

Rs232: 3.5mm stereo (3-conductor)

Firmware/control: micro usb

Environmental:

Operating temprature: 23 to 125°f (-5 to 51°c)

Storage temperature: -4 to 140°f (-20 to 60°c)

Humidity range: 5-90% rh (no condensation)

Power:

Power: 7.4v 2600ман internal battery or wall adapter

Power consumption (total): 12 watts max

Power supply

Input: ac 100-240v~50/60hz

Output: dc 12v 2a

Dimensions:

Dimensions (unit only depth/width/height)

Mm: 28.8 x 108.44 x 139

Inch: 1.13 x 4.27 x 5.47

Weight (unit): 0.8 lbs/0.36 kg
