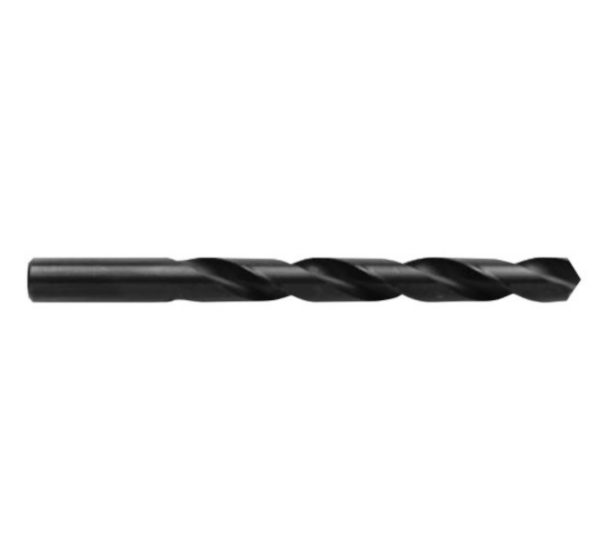

NACHI SD14.0 Drill bit (14mm)
Manufacturer: NACHI Model: SD14.0 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Drill Diameter: 14 mm
Material: High Speed Steel (HSS)
Flute Type: Spiral flute
Tip Type: Standard
Point Angle (θ): 118°
Flute Length: 122 mm
Shank Type: Round (Straight shank)
Shank Diameter: 14 mm
Shank End Size: 14 mm
Overall Length: 181 mm
Helix Direction: Clockwise (Right-handed)
Helix Angle: 22...33°
Applicable Materials: AC, ADC, CU, FC, FCD, S45C, S50C, SCM, NAK, SS400
Non-drillable Materials: 40...50 HRC, 50...65 HRC
Not Recommended Materials: 30...40 HRC, SUS304, SUS316, SUS420, Ti / Ni Alloy
Overall Diameter: 14.0 mm
Total Length: 168 mm
