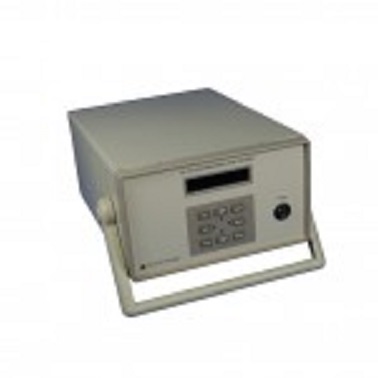

OPTRONIC OL 410-200 Precision Lamp Source (200 W)
Manufacturer: OPTRONIC Model: OL 410-200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Power Output (Watts Maximum): 200 Watts
Voltage output (VDC Maximum): 32 Volts DC
Current Output (ADC Maximum): 8.00 Amps DC
Minimum Lamp Impedance (Ohms): 1.00
Resolution (A): 0.001
Accuracy (% of Full Scale): 0.02%
Stability After Warm-up: 10ppm
Line Voltage Sensitivity: < 2 ppm/ V
Temperature Sensitivity: < 25 ppm/ °C
Power Input Current @ 100/ 115/ 200/ 230 VAC: 6 / 6 / 3.2 / 3.2 A
Operating Temperature Range: 15°C to 35°C
Operating Humidity Range: 10% to 85% (Non-condensing)
Dimensions (inches): 14.00" D x 9.38" W x 5.38" H
Dimensions (cm): 35.56 cm D x 23.83 cm W x 13.67 cm H
Weight: 21.5 lbs (9.8 kg)
Output Connector: Banana Jacks
