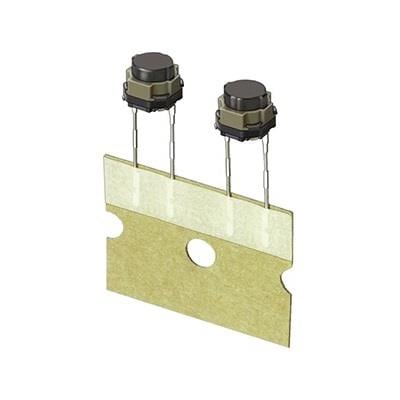

PANASONIC EVQ-PVG05K Light Touch Switches 6mm square Long Tra Light Touch Switch
Manufacturer: PANASONIC Model: EVQ-PVG05K - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Life: 100000 Cycle
Color: Black
Width: 6 mm
Height: 5 mm
Length: 6.1 mm
Actuator: Round
Illuminated: Non-Illuminated
Stem Height: 1.5 mm
Contact Form: SPST
Current Rating: 50 mA
Mounting Style: Through Hole
Ground Terminal: No
Operating Force: 2 N
Switch Function: OFF - (ON)
Termination Style: Solder Pin
Voltage Rating DC: 12 VDC
Mounting Direction: Straight
