PCE 428-EKIT-ICA Outdoor Condition Monitoring Sound Level Meter (25-136 dbA; ISO Cal Cert)

Measuring range: 25 ... 136 db(A)

Accuracy: Class 2

Frequency range: 20 Hz ... 12.5 kHz

Standards: GB/T 3785.1-2010; GB/T 3785.2-2010; IEC 60651:1979; IEC 60804:2000; IEC 61672-1:2013; ANSI S1.4-1983; ANSI S1.43-1997

Frequency analysis: 1/1 Octave band filter: 20 Hz ... 8 kHz

                                 1/3 Octave band filter: 20 Hz ... 12.5 kHz

Microphone: 1/2" microphone Class 2

                     Sensitivity: 40 mV/PA

                     Frequency range: 20 Hz ... 12.5 kHz

                     Connection: TNC

                     Power supply: ICCP Standard

Data-logging interval: 1 s ... 24 h (adjustable)

Display: 160 x 160 pixel LCD with backlight

Memory: 4 GB Micro SD card

Interface: USB (Memory readable via software or directly as mass storage), RS-232

Voltage output: AC 5V RMS

                         DC 10 mV/db

Power supply: 4 x 1.5V AA Batteries

                       12V / 1 A Power plug

                       5V / 1 A USB

Battery life: Min. 10 h continuous use

Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D)

Weight: Approx. 620 g / 1.4 lbs incl. batteries

Outdoor Noise Level Meter Kit

Connections on the suitcase: Microphone: TNC

                                                   12 V charging voltage: XLR

                                                   110 V / 230 V charging voltage: PowerCon TRU

Charger: Victron Blue Smart 12 V / 4 A IP65

Internal batteries: 2 x 12 V / 12 Ah lead gel

Battery running time: min. 10 days

Power supply: with charger EU version: 180 ... 265 V AC

                        with charger US version: 100 ... 130 V AC

                        battery operation: 2 x 12 V / 12 Ah

Cable length: Microphone cable: 2 m / 6 ft 6" with TNC connector

Power supply: 2 m / 6 ft 6" with PowerCon TRU

Dimensions: 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9"

Weight: ca. 14 kg / 30 lb 13 oz with batteries

              ca. 8 kg / 17 lb 10 oz without batteries

Delivery Scope:

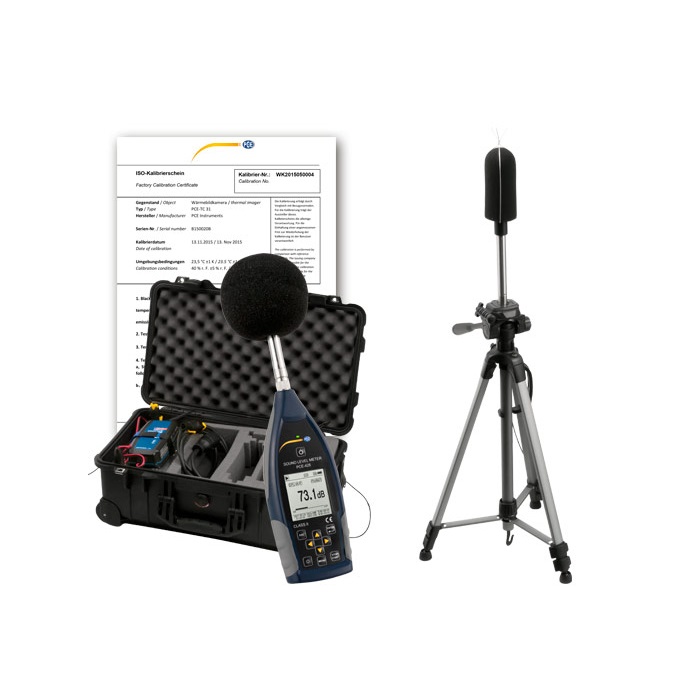

1 x Outdoor Condition Monitoring Sound Level Meter PCE-428-EKIT incl. Outdoor Noise Level Meter Kit

1 x 1/2" measurement microphone class 2

1 x Wind noise suppression (foam ball)

1 x USB interface cable

1 x Software is a free download

1 x Power adapter

1 x Suitcase

1 x User manual

1 x Outdoor Sound Level Meter Kit PCE-4xx-EKIT

1 x Waterproof PELI transport case

1 x Wind and rain protection for microphone of the PCE-4xx series

1 x Charger for internal batteries

2 x 12 V lead gel batteries

1 x Tripod

1 x 2 m / 6ft 6" microphone cable

1 x Connection cable for power supply 110 V / 230 V (optional Schuko or US connection)

1 x ISO calibration certificate
