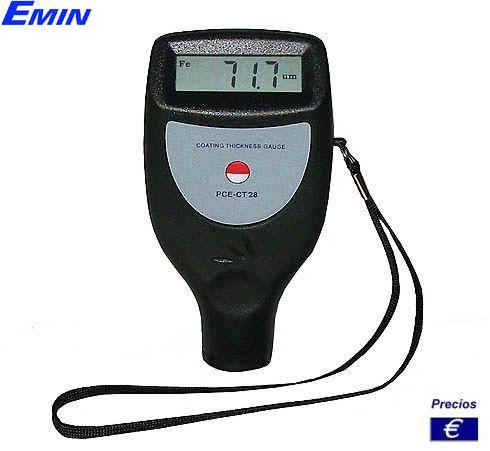

PCE CT 28 Thickness Meter (0 ~ 1250µm)

Measurement range: 0 to 1250µm
Resolution 0.1 µm (in a range of 0.0 to 99.9 µm)
1 µm (above the range)
Accuracy: ±2% or 2.5 µm (highest reading is valid)
Minimum surface measurable: 6 x 6mm
Minimum radial curve convexed: 5mm / concaved: 60mm
Minimum thickness of material: 0.3mm (for ferrous materials)
0.1mm (for non-ferrous materials)
Display: LCD with 4 x 10mm high digits
Operating temperature: 0 to 50°C
Power: 4 batteries
Dimensions: 126 x 65 x 27mm
Weight: 120g with batteries
Delivery Contents
1 x PCE-CT 28 Material Thickness Meter with integrated F/N sensor
1 x Carrying case
4 x Batteries
1 x Set of calibration standards
1 x User's manual
