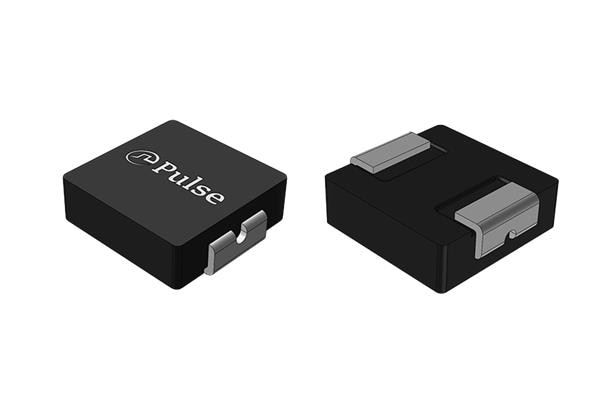

Pulse Electronics PA5449.102NLT High Power Inductor 1uH Shielded 20% 17A 4.62mOhms
Manufacturer: Pulse Electronics Model: PA5449.102NLT - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 8.5 mm
Height: 4 mm
Length: 9.2 mm
Core Type: Molded
Shielding: Shielded
Tolerance: 20 %
Inductance: 1 uH
Application: Power
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Saturation Current: 17 A
Maximum DC Resistance: 4.62 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
