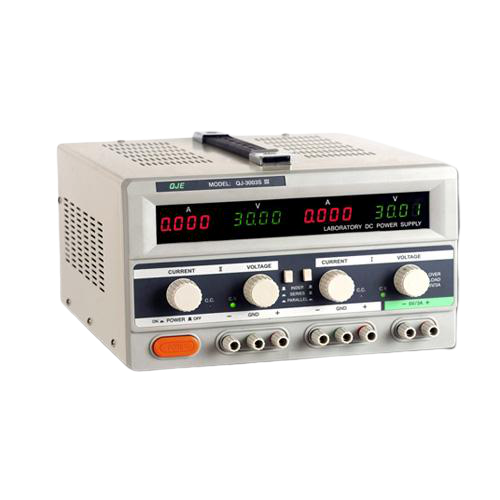

QJE QJ3005EHIII DC POWER SUPPLY ( 0 ~ 30V/0~5A, 2 Output)
Manufacturer: QJE Model: QJ3005EHIII - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output: Dual
Output Voltage: 0 ~ 30V
Output Current: 0 ~ 5A
Fixed Voltage Ouput: 5V/3A
Resolution: 10mV/1mA
Ripple & Noise: CV <= 1mVrm & CC <= 5mVrm
Load effect: CV1x10 ^ -4 + 3mV
Dimensions (WxHxD): 260x160x360mm
Weight (kg): 13
Feature:
+ Highly circuit shows steady resolution ratio
+ 0-30V, 3A/5A tow-way one-way adjustable and fixed output 5V/3A
+ Over current protection
+ Constant voltage, constant current, low ripple & noise, low drift
+ Pre-setting current limit
+ Two-way are automatically connected in series or in parallel mode, the machine can be connected as positive his negative power output
+ Loopy potentiometer voltage set makes more easy
+ Double four color LCD digital panel meters for his current voltage.
Output Voltage: 0 ~ 30V
Output Current: 0 ~ 5A
Fixed Voltage Ouput: 5V/3A
Resolution: 10mV/1mA
Ripple & Noise: CV <= 1mVrm & CC <= 5mVrm
Load effect: CV1x10 ^ -4 + 3mV
Dimensions (WxHxD): 260x160x360mm
Weight (kg): 13
Feature:
+ Highly circuit shows steady resolution ratio
+ 0-30V, 3A/5A tow-way one-way adjustable and fixed output 5V/3A
+ Over current protection
+ Constant voltage, constant current, low ripple & noise, low drift
+ Pre-setting current limit
+ Two-way are automatically connected in series or in parallel mode, the machine can be connected as positive his negative power output
+ Loopy potentiometer voltage set makes more easy
+ Double four color LCD digital panel meters for his current voltage.
