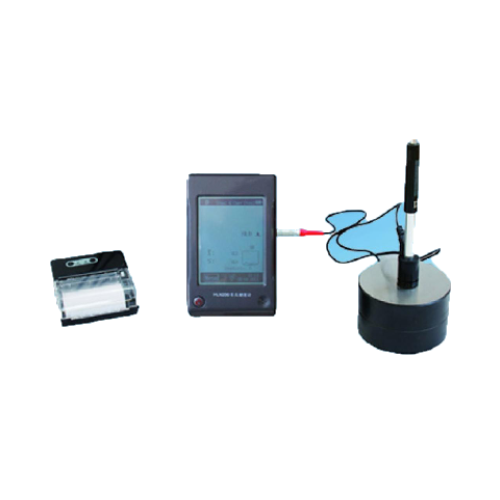

Samyon HLN200 Multifunctional Leeb Hardness Tester (170~960 HLD)
Manufacturer: Samyon Model: HLN200 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Application range:
For testing on large and heavy workpieces or installed permanent parts
For testing in narrow and small spaces where it is not easy to test for bench type hardness testers
It is suitable to determinethe Leeb hardness of ferrous and non-ferrous metals precisely.
Itfeatures high applicability and is widely used in producing workshop for quality control.
Specifications:
Measuring accuracy: ± 4 HLD
Hardness repeatability: ± 4 HLD
Measuring range: 170~960 HLD
Testing direction: arbitrary
Hardness conversion: HRC, HRB, HB, HV, HSD & tensile strength
LCD display: 3.9" LCD, 240 x 320 pixels resolution (touch screen)
Data storage: 800 groups
Upper & lower limit range: same as measuring range
Working voltage: 3.7V (lithium rechargeable battery)
Working time: 4-8 hours
Charging power: DC 5.5V/1A
Continuous working time after one charging: about 30 hours (backlight not on)
Working temperature: 0 °C~+50°C
Working humidity: 20%~85%
Storage temperature: -30 °C ~+70 °C
Storage humidity: 5%~95%
Dimensions: 180 x 90 x 30mm
Weight: 350g (including impact device)
Packing dimensions: 368 x 247 x 87mm
Total weight: Approx. 5.5Kg
Heatsensitive printer:
Width of print paper: 57.5± 0.5mm
Diameter of paper roll: ≤30mm (Heatsensitive print paper)
Printing speed: 5cm/sec. (when power is enough)
Printing resolution: 203dpi (8dot/mm)
Working power supply: 650mAh 7.2V rechargeable NiMH
Recharging power supply: DC 12V/1A
Dimensions: 90 x 76 x 36mm
Weight: 220g (not including paper roll)
Working temperature: -20 °C ~+50 °C
Working humidity: 20%~85%
Storage temperature: -30 °C ~+70 °C
Storage humidity: 5%~95%
Standard accessories:
Heatsensitive mini-printer: 1 pc.
D type impact device: 1 pc.
Small support ring: 1 pc.
Leeb standardized block: 1 pc.
Charger: 1 pc.(For both main machine and printer)
Nylon brush: 1 pc.
