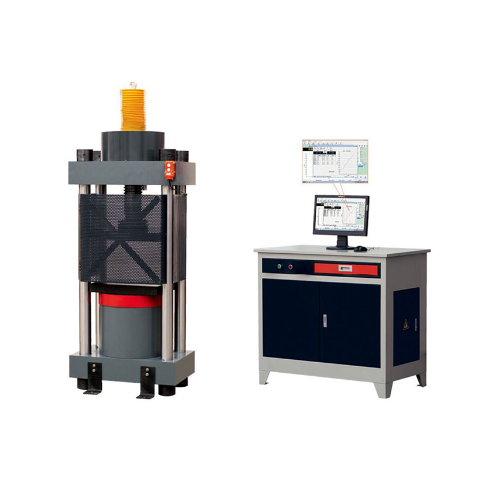

Samyon SYW-3000KN Concrete Rupture Test and Compression Testing Machine (3000kN)
Manufacturer: Samyon Model: SYW-3000KN - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Main Function and Usage
1. It is mainly used in the testing of compression strength of the concrete.
2. Control Method of Testing Rate: Electronic Control.
Main Specifications and Technical Parameter
Maximum Testing Force: 3000kN
Measure Range of Testing Force: 2%~100%FS
Relative Accuracy of Value Display of Testing Force: <±1%
Adjustment method of Lead Screw: Electronic
Top and Bottom Pressure Plate Dimension (mm)): 400×500
Max.Space of Top and Bottom Pressure Plate(mm): 500
Max.Piston Stroke(mm): 150
Piston Diameter(mm): Φ400
Rated Pressure of the Hydraulic Pump(Amp): 40
Source Power(kW): Three phase 1.1
Overall Dimension(L*W*H)(mm): 800×800×1800
Weight (kg): 2300
