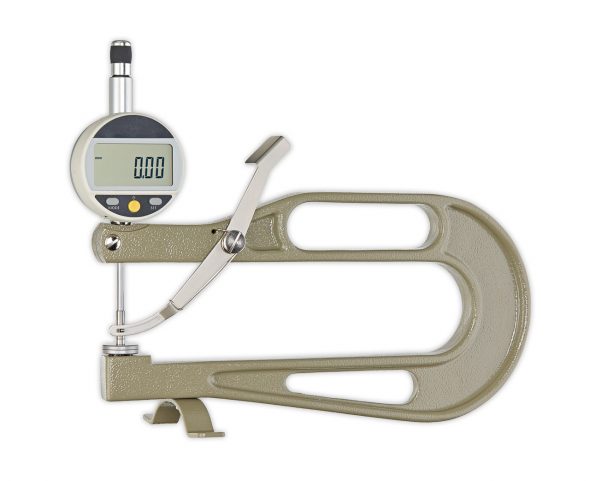

SCHMIDT JD-200-25 Thickness Gauge (0 – 25 mm / 0 – 1 inch)

Resolution: 0.01 mm / 0.001 inch

Measuring range: 0 – 25 mm / 0 – 1 inch

Depth of jaw: 200 mm

Measuring principle: Self closing

Feeler shape: A/B/C/D/E

Display: LCD 6 digit, 8.5 mm high

Measuring system: Capacitive (Sylvac)

Temperature range: 10 – 45 °C

Battery: 3 V Lithium, CR 2032

Data output: USB, RS-232, galvanic isolation

Weight, net (gross): Approx. 700 g (750 g)


Special Features

Thickness gauge JD-200-25 features an easy to read digital display along with the high accuracy

The thickness gauge is available with 5 different feelers, which can be found below

Measuring by spring force

Opening by lifting device (lever) – self closing thickness gauge JD-200-25Thickness gauge with lifting device

Output signals:


– RS-232

Includes swing-out foot for on-table operation
