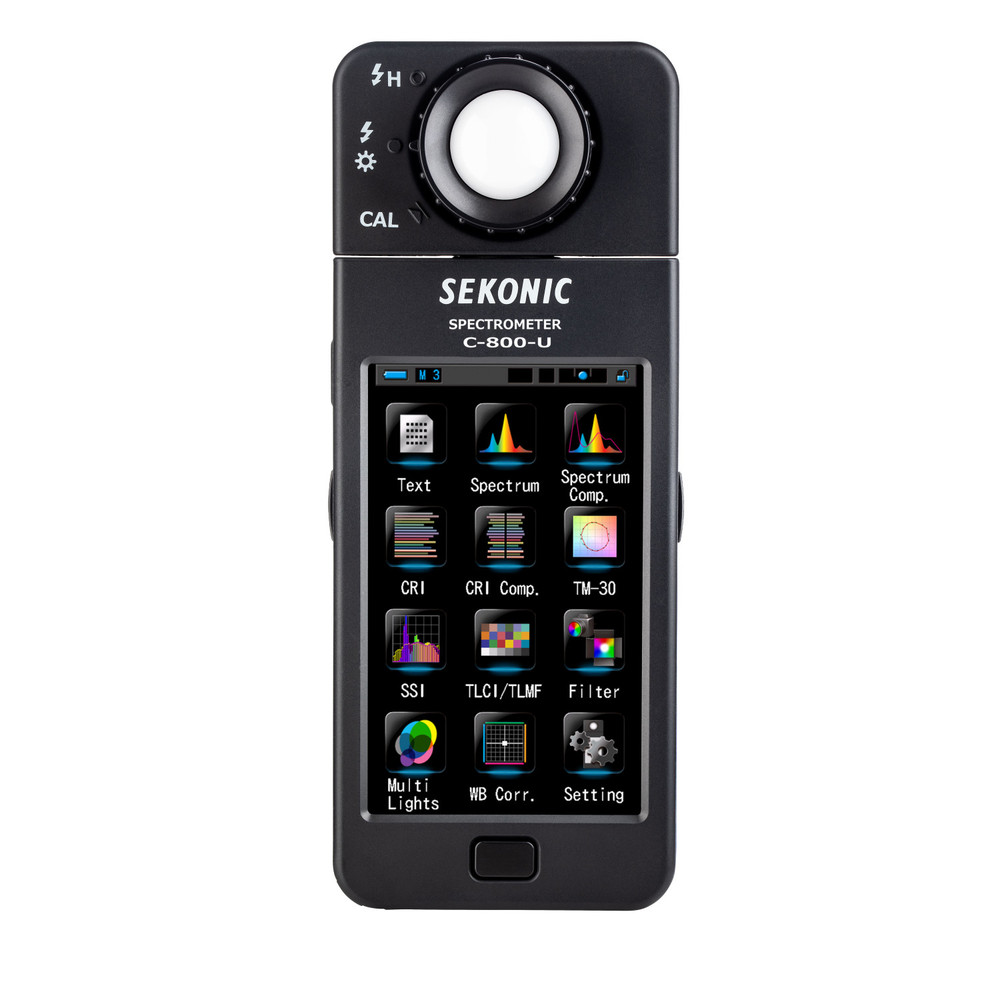

SEKONIC C-800-U Spectrometer

Sensor: CMOS linear image sensor


Measuring System:

Spectro Meter

Incident light: Swivel head


Measuring Range and Modes:



Measuring Modes (Ambient Light): Ambient light


Measuring Modes (Flash light): Cordless, Cord-in (PC)


Measuring Range at ISO100 (Ambient Incident Light):

1 lx to 200,000 lx *

0.09 fc to 18,600 fc


* Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments"


Measuring Range (Flash Incident Light):

20 lx・s to 20,500lx・s

1.86 fc・s to 1,900 fc・s


Spectral Wavelength Range:

380nm to 780nm


Color Measuring Mode (Display Mode):

Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode


Color Measuring Range (Ambient Light):

1,600 to 40,000K

Color Measuring Range (Flash Light):

2,500 to 40,000K

Color Measuring Units (Color Parameters):

Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation,

Color Measuring Units (Color Rendering Properties):

CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units (Photo/Cinematography):

LB/CC filter number (camera/lighting filter), LB/CC index, CC number,

Target Color Temperature Range: 2,500K to 10,000K

Shutter Speeds Range (Ambient Light): Auto - Max.: 15 sec., Min.: 0.5 sec.

Shutter Speeds Range (Flash Light): 1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

Memory: Yes (99 times)

Contrast/Comparison Function: Yes

Custom Settings: Yes (12 custom settings)

Measuring Data Output:

Memorized value with graphic


Physical:

Tripod Socket: Yes

Operating Temperature: -10 deg. C to 40 deg. C

Storage Temperature: -10 deg. C to 60 deg. C

Power Source: 1.5V x 2 (AA battery), USB bus-power

LCD: 4.3" color dot matrix touch panel LCD

LCD Backlight: Yes

Product Weight (lb): 0.51

Product Weight (kg): 0.23

Product Height (in): 1.06

Product Length (in): 7.2

Product Width (in): 2.87

Product Height (cm): 2.7

Product Length (cm): 18.3

Product Width (cm): 7.3
