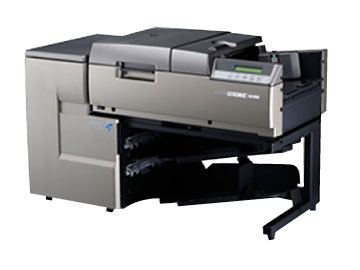

SEKONIC SR-11000 Desktop-type optical mark reader
Manufacturer: SEKONIC Model: SR-11000 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Read sensor:
Read head: 1 (single side) or 2 (dual sides)
Mark discrimination: 16 steps (256 degrees)
Light Source: Infra red ray (940nm) or Visible red ray (660 nm)
Mark Implements: Infra red ray: pencil only, Visible red ray: Pencil + Pen (Blue or Black)
Read head channels: 1/6*(48channels), 0.2*(40channels), 0.25*(33channels), or 0.3* (27 channels)
Mark Sharpes: Retangle Oval and Circles
Read technique: reading reflective sensor
Scanning:
Error detection: automatic paper discharge, sheet empty, double feeding, timing mark, left end skew, left sheet on the (eject) tray
Interface: USB2.0(High speed)
Operation:
LCD display: 40 characters(20characters x 2 lines)
Operation button: 5 buttons
Hopper: Hopper Capacity
50 sheets <option> A4 sheet loading assist
Mark sheet:
size: card(IBMcard)
Width: 82.55 to 228.6mm (3.25" to 9")
legth: 187 to 304.8mm (7.36" to 12.0")
rows: 80
columns: 48 (1/6"), 40 (1/5"), 33 (1/4"), 27 (1/3")
form quality: high quality paper or OCR paper
thickness: 72-135kg (0.11-0.19mm/83.8g/m2 to 157g/m2)
feed speed: up to 11000/hour
suction system: in the device
Printer:
Printing method: ink jet
Print contents: fix characters (max 20 bytes), sequence number (max 8 digits), date, time (yyy/mm/dd hh:mm:ss)
the number of printable characters: max 28 characters
type of characters: alphabet, numeric, japanese (kana)
character size: H:3mm W:4mm-6.4mm (H:0.1" W:0.15"-0.25")
character gap: 0.8mm-92mm (0.03"-3.62")
print pixels: H:12 pixels W:9pixels
Print Position: on top, main scan direction: adjust head position by manually, sub scan direction: set start position by program
ink cartridge: expire: 6months after open the package or print 1,000,000 characters
exit tray: tray capacity: main: 500 sheets select(reject) 150 sheets
power: voltage/relatives: AC100-240V 50-60Hz
Condition: temperature: 5-35 degree C (41-95F)
Dimension: Humidity: 30-80%
WxHxD: 800x490x365 (mm), 31.5x19.3x14.3 (")
Weight: 37kgs (81.5Lbs)
Accessories: User manual, A4 check sheets, A4 mark entry sheets, USB cable, Power cable, Ink Catridge, Exit trays
