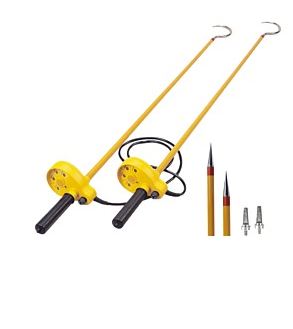

SEW LVD-415 Low Voltage Indicator

Maximum Rating  between Poles: 450V
Current Rating: 500mA
Voltage Rating: 600V
VOLTMETER The Neon Voltage Scale Indication
Neon lit when Voltage > or = 110V
Neon lit when Voltage > or = 220V
Neon lit when Voltage > or = 280V
Neon lit when Voltage > or = 415V
Accuracy on both voltage
display       ±20% of Rdg
Voltage Detector with LED
Led Lit when Voltage between probes >  25V ±20V
Buzzer Sounds when Voltage on tips >        25V ±20V
Total Length: 1000m/m
Fiber Glass Length: 795 m/m
Weight: 700g
Poles: Fiber Glass
Handles:Rubber
Body: ABS

Details



列印
  FEATURES
● No batteries required.
● Every circuit is doubled.
● Buzzer indicates voltage detected.
● Led indicates voltage detected.
● Neon scale indicates voltage.
● Dual HBC fuses.
● High grade fiber glass probes.
● Super polished fiber glass.
● High strength connecting cord.
● Heavy duty rated.
● Replaceable tips.
● Choice of tips available.
● Lightweight.
● Small storage space.
● Strong strength reliefs.
● Double poles non-polarized.
● Suitable for 45 to 70 Hz networks.
● Contact detector type.
● Passive circuitry.
● Fiber glass 1.6mm - CU 35um PCB.
● Super bright neon lights and LEDs.
● Ergonomically-designed.
● EN 61010-031 CAT IV 500V.

  SPECIFICATIONS

  GENERAL
  Maximum Rating
  between Poles
  450V
  Category   IV
  FUSES
  Type   HBC/HRC
  Rate of Rupture   Slow Blow
  Current Rating   500mA
   Voltage Rating   600V
  Quantity 2
  VOLTMETER The Neon Voltage Scale Indication
  Neon lit when Voltage > or =   110V
  Neon lit when Voltage > or =   220V
  Neon lit when Voltage > or =   280V
  Neon lit when Voltage > or =   415V
  Accuracy on both voltage
  display
  ±20% of Rdg
  Voltage Detector with LED
  Led Lit when Voltage between
  Probes >
  25V ±20V
  Voltage Detector with Buzzer
  Buzzer Sounds when
  Voltage on tips >
  25V ±20V
  MECHANICAL
  Total Length   1000m/m
 Fiber Glass Length   795 m/m
  Weight   700g
  ENVIRONMENTAL
  Operating temperature Range   1ºC to +55ºC
  Storage Temperature   -20ºC to +70ºC
  MATERIAL
  Poles   Fiber Glass
  Handles   Rubber
  Body   ABS
