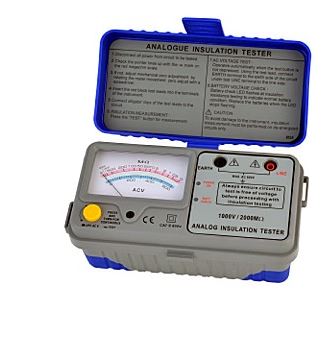

SEW 1126 IN Insulation Tester

Manufacturer: SEW
Model: 1126 IN
Contact
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

Test voltage (DC V): 1000V /+10%
Measuring ranges: 0-2000MΩ
Mid-scale value: 50MΩ
Accuracy: 2-1000MΩ : ± 5% rdg
Short circuit current 1mA
Measuring AC Voltage Range: 0-500V /± 2.5%
Dimensions: 175(L) × 85(W) × 75(D) mm
Weight:560g
Power source 1.5V (AA) × 8

Details

FEATURES

● High quality Taut Band movement.
● Measures insulation(MΩ) and AC voltage.
● LED indiction for testing insulation.
● Highly efficiency and accurate DC-DC converter.
● Battery check function.
● Compact and lightweight.
● AC voltage measurement can be made without depressing the test button.

SPECIFICATIONS

Insulation Resistance
Test voltage (DC V)	1000V
Output voltage on open circuit	Rated test voltage +10%
Measuring ranges	0-2000MΩ
Mid-scale value	50MΩ
Accuracy	2-1000MΩ : ± 5% rdg 0.7% of scale length at other ranges
Short circuit current	1mA
AC Voltage
Range	0-500V
Accuracy	± 2.5% of full scale
General
Operating temperature & humidity	0°C ~ 40°C relative humidity up to 85%
Storage temperature & humidity	-10°C ~ 50°C relative humidity up to 85%
Dimensions	175(L) × 85(W) × 75(D) mm
Weight (battery included)	Approx. 560g
Power source	1.5V (AA) × 8
Safety standard	EN 61010-1 CAT III 500V EN 61326-1
