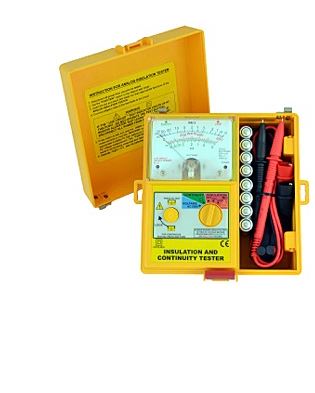

SEW 1800 IN Insulation Testers (1kV, 400MΩ)

Manufacturer: SEW
Model: 1800 IN
Contact
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

Test voltage (DC V):250V/ 500V/1000V
Measuring ranges: 0-100MΩ / 0-200MΩ / 0-400MΩ
Short circuit terminal current: 2mA DC
Continuity: yes
Measuring AC Voltage: 0-500V AC/ ± 2.5%
Dimensions: 170(L) × 165(W) × 92(D) mm
Weight: 1000g
Power source: 1.5V (AA) × 8

Details

FEATURES

● High quality Taut Band movement.
● Battery operated.
● Solid state circuitry.
● Battery check feature.
● Automatic circuit discharge.
● Three insulation test voltages.
● Color-coded scale.
● AC voltage measurement.
● Fuse protected.

SPECIFICATIONS

Insulation Resistance
Test voltage (DC V)	250V / 500V / 1000V
Measuring ranges	0-100MΩ / 0-200MΩ / 0-400MΩ
Output voltage on open circuit	Rated test voltage +10%
Accuracy	±5% of indicated value
Short circuit terminal current	2mA DC
Power consumption	190mA
Continuity
Measuring ranges	0-50Ω & ∞
Accuracy	± 5% of scale length
Open circuit terminal voltage	445mV DC Approx.
Short circuit terminal current	145mA DC Approx.
Power consumption	200mA
AC Voltage
Range	0-500V AC
Accuracy	± 2.5% of full scale
Line frequency range	40-1k Hz
General
Dimensions (with housing front cover)	170(L) × 165(W) × 92(D) mm
Weight (battery included)	Approx. 1000g
Power source	1.5V (AA) × 8
Safety standard	EN 61010-1 CAT III 500V EN 61326-1
