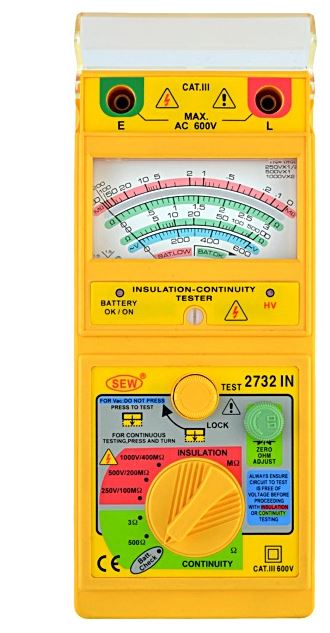

SEW 2732 IN Insulation Testers (1kV, 400MΩ)

Manufacturer: SEW
Model: 2732 IN
Contact
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

Test voltage (DC V): 250V/ 500V/ 1000V
Measuring ranges: 0-100MΩ/ 0-200MΩ/ 0-400MΩ /± 5%
Short circuit terminal current: >1.0mA
Continuity: yes
Measuring AC Voltage: 0-500V AC/± 3%
Dimensions: 205(L) × 90(W) × 55(D)mm
Weight: 550g
Power source 1.5V (AA) × 8

Details

Insulation Resistance
Test voltage (DC V)	250V / 500V / 1000V
Output voltage on open circuit	Rated test voltage +10%
Measuring ranges	0-100MΩ / 0-200MΩ / 0-400MΩ
Mid-scale value	1MΩ / 2MΩ / 4MΩ
Scale multiplier	×1/2 / ×1 / ×2
Accuracy	± 5% of indicated value
Output short- circuit current	1.3mA
Continuity
Measuring ranges	3Ω / 500Ω
Output short- circuit current	≥200 mA
Accuracy	± 1% of scale length
AC Voltage
Range	0-500V AC
Accuracy	± 3% of scale length
General
Voltage warning	Warning light circuit live lit From 90Vdc / 70Vac, Buzzer beep from 24V ac/dc
Battery check	Battery check indicate good batteries from 8Vdc to 13Vdc during a load test of 205mA.
Dimensions	205(L) × 90(W) × 55(D)mm
Weight (battery included)	Approx. 550g
Power source	1.5V (AA) × 6
Safety standard	EN 61010-1 CAT III 500V EN 61326-1
