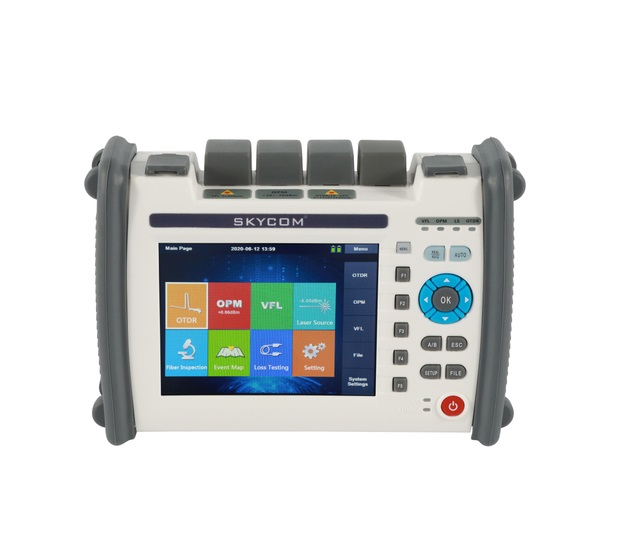

SKYCOM T-OT750-S-A40 Optical Time Domain Reflectometry (1310/1550nm , 40/38dB)

Wavelength (nm): 1310/1550

Dynamic range (dB): 40/38dB

Deadzone (M): 0.8/4

Pulse Width:

          SM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs

          MM: 850mm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us

          1300mm：3ns, 5ns, 10ns, 20ns,50ns，100ns，200ns，500ns，1us，2us

Test Range:

          SM: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km

          MM: 850mm：500m，2km，5km，10km

          1300mm：500m，2km，5km，10km，20km，40km，80km

Minimum sampling resolution: 0.05m

Maximum sampling point: 256,000

linearity: ≤0.05dB/dB

Loss resolution: 0.001dB

Distance resolution: 0.01m

Distance accuracy: ±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive inde)

Result Storage: >16G SD card(Maximum support 128G)，Store more than 100000 pieces of data

Complete user data interface: USB(Type A)、MINI USB、SD card

Monitor: 5.6 "TFT LCD 640 * 480

Battery: 7.4V/2500mAh X 2 lithium battery(Aviation certification)

Working temperature: Working temperature：-10℃~+50℃；Storage temperature：-20℃~+70℃

Relative humidity: ≤95%(No condensation)

Size and weight: 215×155×68mm/1.1kg(Including 2 batteries)

VFL: 10KMS, 10mW，CW/2Hz

OPM: Option A：-10dBm~-70dBm; Option B：+23dBm~-50dBm

Laser source: Output：-5dBm±2dB，Frequency：CW/270Hz/1KHz/2KHz

GPS/GNSS: Customized

WIFI/Bluetooth: Customized
