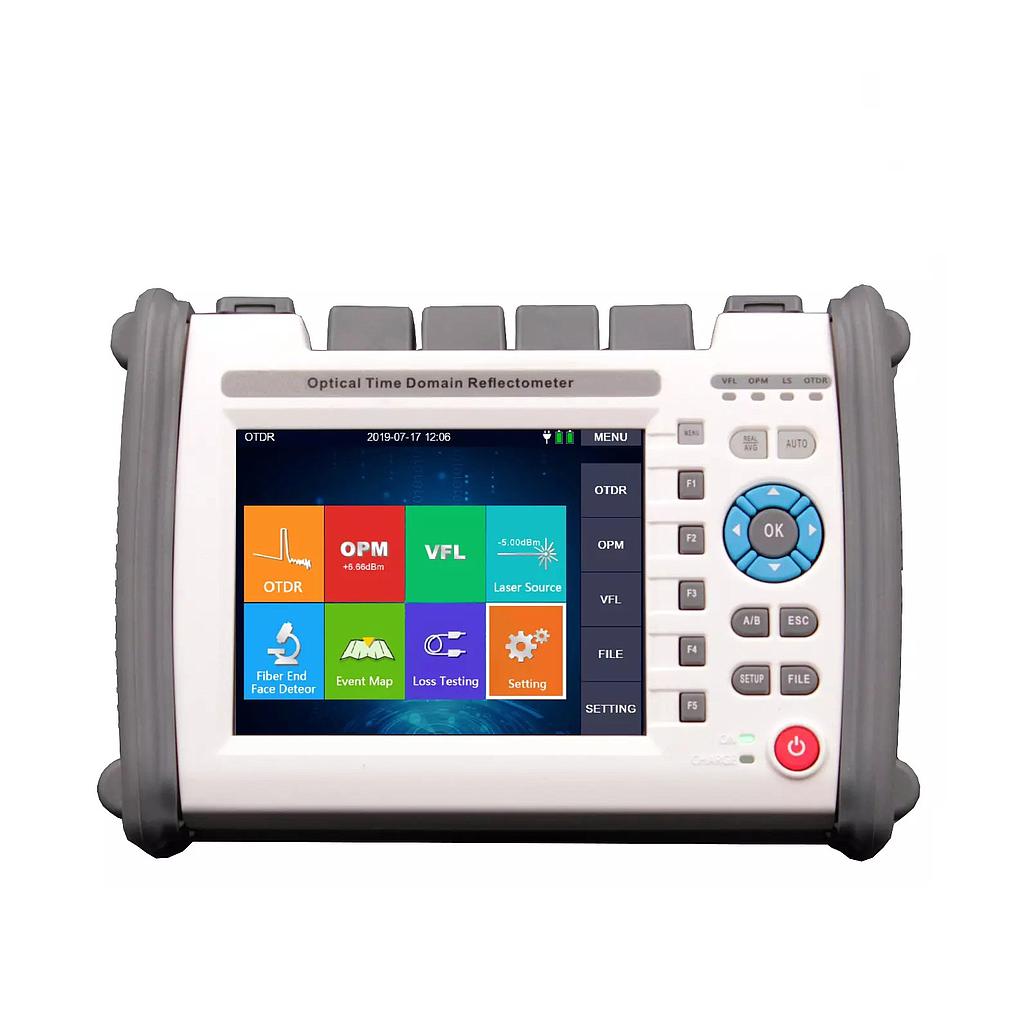

SKYCOM T-OT750-S-AB35 Touch Screen OTDR (1310/1550nm, 35/33/32dB)
Manufacturer: SKYCOM Model: T-OT750-S-AB35 Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Wavelength (nm): 1310/1550+1625
Dynamic range (dB): 35/33/32
Pulse width (ns): SM:3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
MM:850mm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us
1300mm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us
Deadzone (m): 0.8/4
Minimum sampling resolution: 0.05m
Maximum sampling point: 256,000
Linearity: ≤0.05dB/dB
Loss resolution: 0.001dB
Distance resolution: 0.01m
Monitor: 5.6 "TFT LCD 640 * 480
Battery: 7.4V/2500mAh X 2 lithium battery(Aviation certification)
