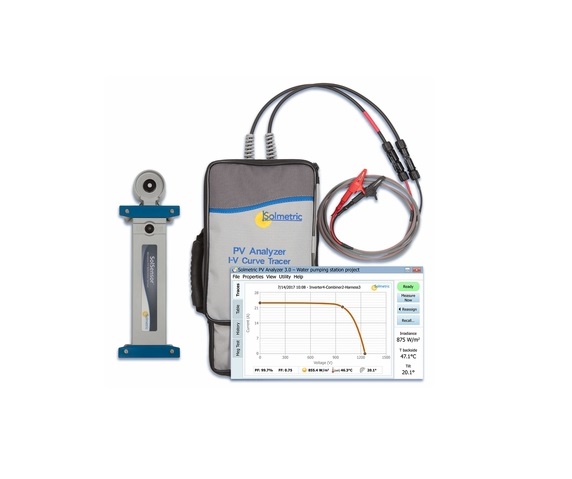

Solmetric PVA-1500 V3 I-V Curve Tracer (0-30 A; 0–1500 V)
Manufacturer: Solmetric Model: PVA-1500 V3 Origin: USA Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
PV voltage range: 0-1500 V DC
PV current range: 0-30A DC
Voltage accuracy (0 to 45 °C): +/-0.5% +/-0.25V
Current accuracy (0 to 45 °C): +/-0.5% +/-0.4A
Resolution: 25mV, 2mA
Current resolution: 2mA
Measurement cycle time: 4-5s typical, measurement-to-measurement
I-V sweep duration: 0.05 - 2s. Typically 0.2s for PV strings
I-V trace points: 100 or 500, selectable
Operating ambient temperature: -10 to 45 °C
Battery life: 8 hours continuous operation, 1000 I-V curves
Protection features: Over-voltage, -current, -temperature, and reverse polarity
Includes:
• I-V Measurement Unit with shoulder strap
• PVA Software for Windows™
• Aligator clip test leads
• MC-4 to MC-4 'Connector savers'
• MC-4 Connector tool
• Battery charger (AC adapter)
Data Analysis Tool
