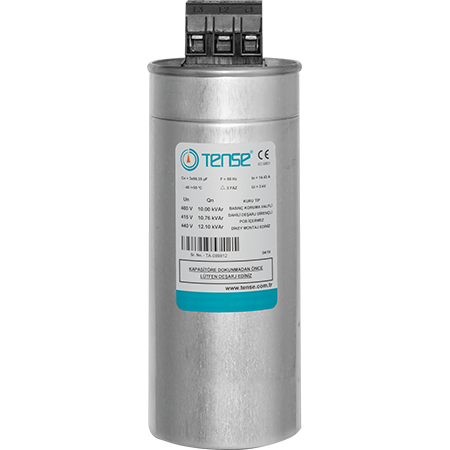

TENSE TTK-10 Three-Phase Low Voltage Power Capacitor (10kVAr)
Manufacturer: TENSE Model: TTK-10 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
- Power : 10 kVAr (Three-Phase)
- Dimensions : 50x125mm.
- Standards : IEC 60831-1/2
- Rated Voltage : 400V AC
- Over Voltage : Un + 10%, 8 hours in every 24 hours
- Over Current : 1.5 x In
- Casing : Cylindrical aluminum can.
- Life Expectancy in Normal Condition : >130.000 hours (ambient temperature up to + 55°C)
- Environment temperature : – 40°C – +55°C
- Cooling : Natural air cooled. Casing temperature maximum 60°C permitted on top of the can.
- Dielectric System : Metallised Polypropylene Film, Self Healing property.
- Safety Features : Over pressure sensitive 3 phase disconnector.
- Mounting Position : Vertical.
