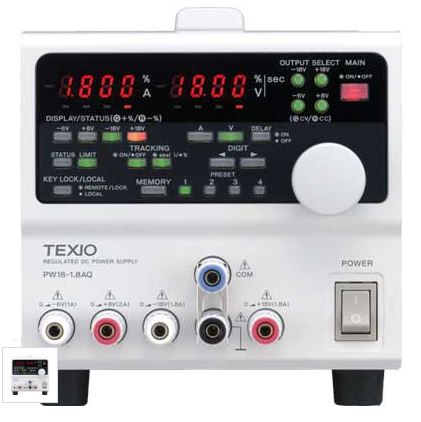

Texio PW18-1.8AQ DC Power Supplies (18V, 1.8A)
Manufacturer: TEXIO Model: PW18-1.8AQ Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Channels: 4
Output (Voltage, Current): +/-18V, 1.8A; 8V,2A; -6V/1A
Ripple: 0.5 mVrms, 1.5 mArms
Line regulation: 1mV, 2mA
Load regulation: 2mV, 5mA
Power: 245W/300VA
Case dimensions 138(W)×124(H) ×380(D) mm
Weight Approx.9.1kg
Accessories
instruction manual ×1, power cable
× 1, External control cable × 1,
Remote sensing connector lead × 2
(PW26-1ATS, PW18 -1.3ATS only
