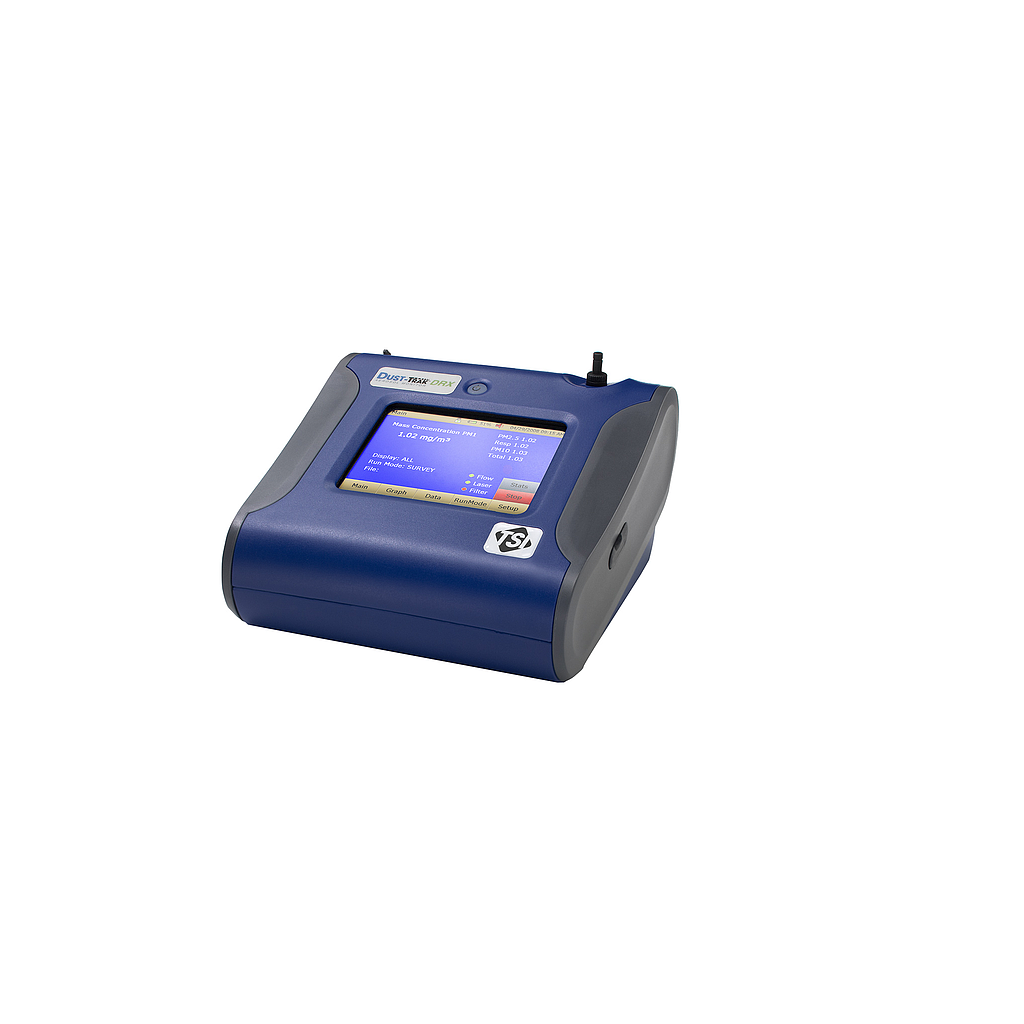

TSI 8533 Desktop Aerosol Monitor (0.001 ~ 150 mg/m³)

Sensor Type: 90° light scattering

Particle Size Range: 0.1 to 15 µm

Aerosol Concentration Range: 0.001 to 150mg / (m ^ 3)

Display: Size Segregated Mass Fractions for PM1, PM2.5, Respirable, PM10 and Total. All displayed

Resolution: plus/minus 0.196 of reading or 0.001mg / (m^3) whichever is greater

Zero Stability: plus/minus 0.002mg/(m^3) per 24 hours at 10 sec time constant

Flow Rate: 3.0 L/min

Flow Accuracy: (plus/minus 5)% factory set point, internal flow controlled

Temperature Coefficient: 0.001mg/(m^3) per°C

Operational Temp: 32 to 120°F( 0 to 50°C )

Operational Humidity: 0 to 95% RH, non-condensing

Pollution Degree: 2

Maximum Altitude: 2000 M

Time Constant: User adjustable, 1 to 60 seconds

Data Logging:

5 MB of on-board memory (>60,000 data points)

45 days at 1 minute logging interval

Log Interval: User adjustable, 1 second to 1 hour

Communications: USB (host and device) and Ethemet. Stored data accessible using flash memory drive

Power-AC: Switching AC power adapter with universal line cord Included, 115-240 VAC

Analog Out

User selectable output, 0 to 5 V or 4 to 20 mA. User selectable scaling range

Alarm Out:

Relay or audible buzzer

Relay

Non-latching MOSFET switch

User selectable set point

-5% deadband

Connector 4-pin, Mini-DIN connectors

Screen: 5.7 in. VGA color touchscreen
