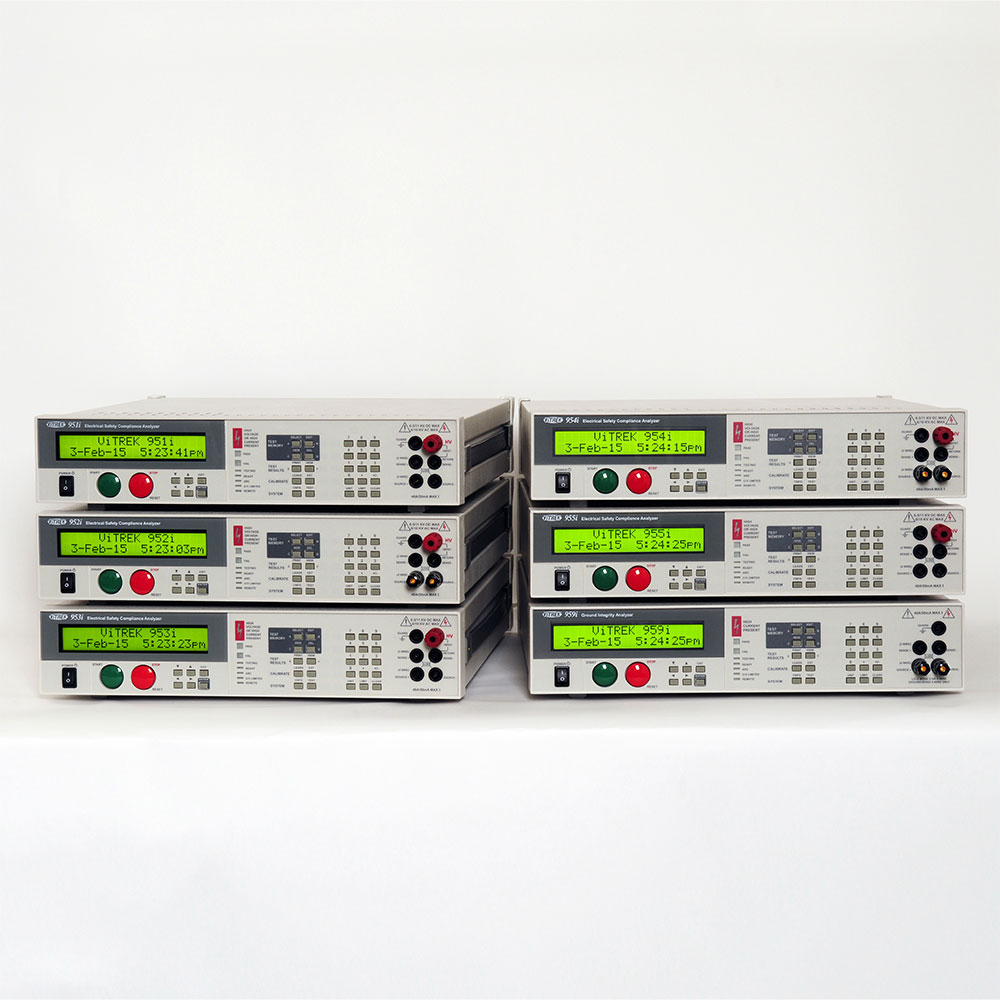

Vitrek 954i Hipot Testers (20V - 6KV)

AC Hipot: 20V-6KV

Max Std Current: 50mA

(30KVAC Ext. opt): 10mA

DC Hipot / IR: 50V-11KV

Max Current: 30mA

(MAX IR): 4T

40A Ground Bond: yes

4 Wire Ohmmeter 100µΩ to 149KΩ: Yes


General

Arc Detection: Test Specific, Dual Parameter. Allows a specific broadband current amplitude limit from 2 to 20mA peak and pulse width limit from 4 to 30 microseconds for each test

Ethernet: High speed, high noise immunity LAN interface

RS232 Interface: Selectable baud: 9600, 19200, 38400, 57600 or 115200, full handshake

VICL Interfaces: Two each provided for control of HV Scanners and other 950i series units

Digital I/O Interface: Provides 8 digital inputs and 5 digital outputs. Functions include Test Selection, Start/Stop, Testing, Pass/Fail, Print, HV Present, Safety Interrupt, Dwell Timer

USB Host Printer Port: For hard copy test reports and LAN/Ethernet Interface

Optional GPIB Option GP-9: Adds GPIB capability to LAN/Ethernet card

Real Time Clock: Accuracy: 10 seconds per day, Battery Backup: 30 days minimum

Non-Volatile Memory: 100 user test sequences up to 100 steps each not to exceed 1000 total test steps. All test sequences, user settings and calibration data are stored in internal non-volatile Memory data retention is specified for 20 years and 1000000 write cycles

Dwell Time Accuracy: 0.05% + 20mS, Digital output provides dwell timer verification

Operating Temperature: 0 °C to 50 °C

Humidity: 90% RH max, 0 to 40°C

Power: 110 to 260 VAC, 50-60 Hz, 500VA Max

Dimensions: 89mm H x 432mm W x 457mm D (3.5" H x 17" W x 18" D)

Weight: 14Kg (28 lb.)

Accessories: Alligator test leads, NIST traceable calibration certificate with no data, power cord and operator's manual. ISO 17025 cal cert with data and uncertainties available
