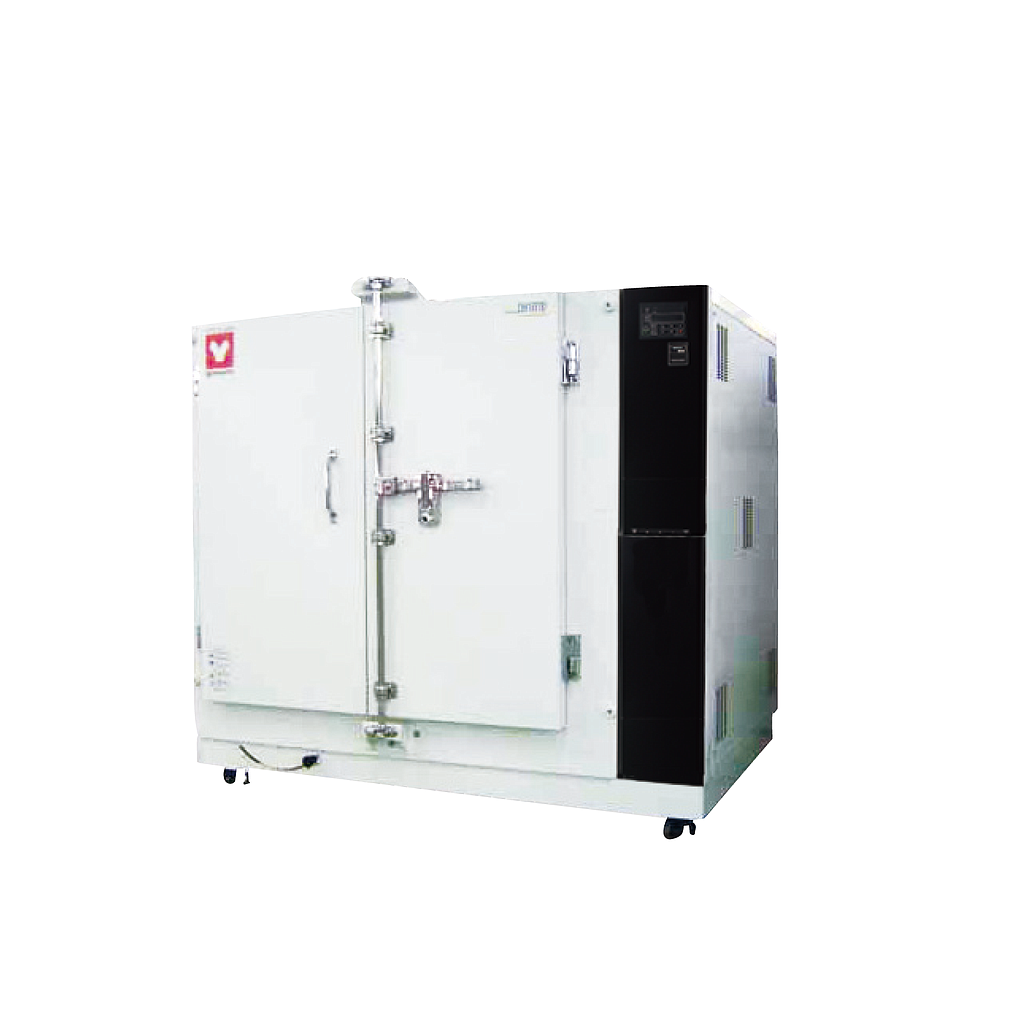

Yamato DH832 Large Capacity Fine Oven (512L, 6.9kW)
Manufacturer: Yamato Model: DH832 P/N: 211762 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
System: Forced air circulation and ventilation
Operating temp. range: Room temp. +15°C~300°C
Temperature fluctuation: 3°C (at 300°C)
Heater: Stainless steel pipe heater with fins 6.9kW
Sensor: K-Thermocouple (Double sensor)
Fan motor: Axial flow fan (Capacitor motor: 20W), Two motors used
Cable port: I.D. ø30mm (rear)
Heat insulator: Glass wool+ Ceramic fiber
Internal dimensions（W×D×H mm）: 800×800×800mm
External dimensions（W×D×H mm）: 1500×1015×1330mm
Remarks(dimensions): 512L
Power Source (50/60 Hz): 3 phase AC220V 19A
Weight: 350kg
Shelf / bracket: Stainless punching metal shelf (loading up to 15kg/shelf) 3pcs. / 3 sets
