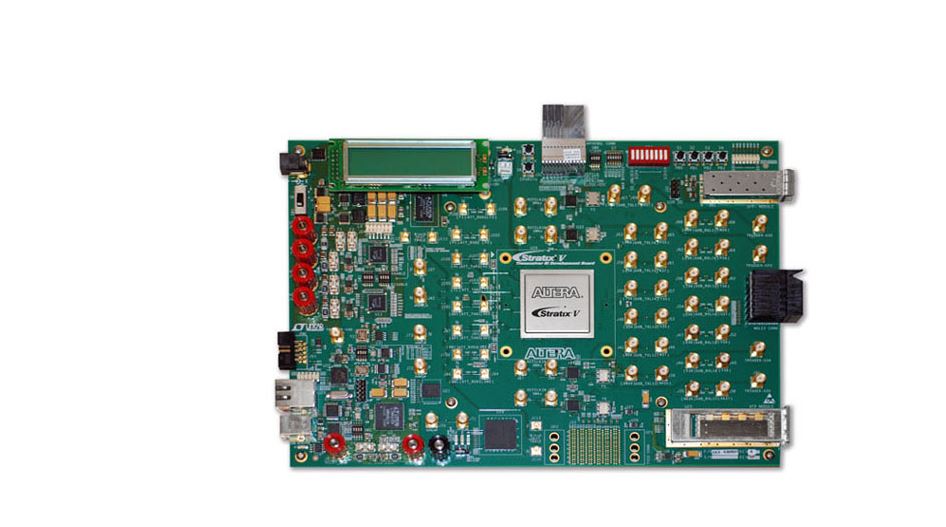

Terasic Altera Transceiver Signal Integrity Development Kit, Stratix V GT Edition

Featured device
Configuration status and set-up elements
    On-board USB-BlasterTM
    Fast passive parallel (FPP) configuration via MAX® II device and flash memory
    Two configuration file storage
    Temperature measurement circuitry (die and ambient temperature)
    50 MHz, 125 MHz, programmable oscillators (preset values: 624 MHz, 644.5 MHz, 706.25 MHz, and 875 MHz)
    SMA connectors for supplying an external differential clock to transceiver reference clock
    SMA connectors for supplying an external differential clock to the FPGA fabric
    SMA connectors to output a differential clock from the FPGA's phase-locked loop (PLL) output pin
General user input/output
    10-/100-/1000-Mbps Ethernet PHY (RGMII) with RJ-45 (copper) connector
    16x2 character LCD
    One 8-postion dipswitch
    Eight user LEDs
    Four user pushbuttons
Memory devices
    128-megabyte (MB) sync flash memory (primarily to store FPGA configurations)
High speed serial interfaces
    Four full-duplex GTB (28.05 Gbps) transceiver channels routed to MMPX connectors
    Seven full-duplex GXB (12.5 Gbps) transceiver channels routed to SMA connectors
        Short trace routed on a micro-strip
        Six strip-line channels from the with all the trace lengths are matched across channels
    21 full-duplex GXB transceiver channels routed to backplane connector
        Seven channels to Molex® Impact® connector
        Seven channels to Amphenol® XCede®
        Seven channels to footprint of Tyco Strada® Whisper® (connector is not populated)
    Laptop DC input
    Voltage margining

Chi tiết


The Altera® Stratix® V GT Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:

  • Evaluate transceiver link performance up to 28 Gbps
  • Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus® II software)
  • Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)
  • Perform jitter analysis
  • Verify physical media attachment (PMA) interoperability with Stratix V GT FPGAs for targeted protocols, such as CEI-25/28G, CEI-11G, PCI Express® (PCIe®) Gen 3.0, 10GBASE-KR, 10 Gigabit Ethernet, XAUI, CEI-6G, Serial RapidIO® , HD-SDI, and others
  • Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER
