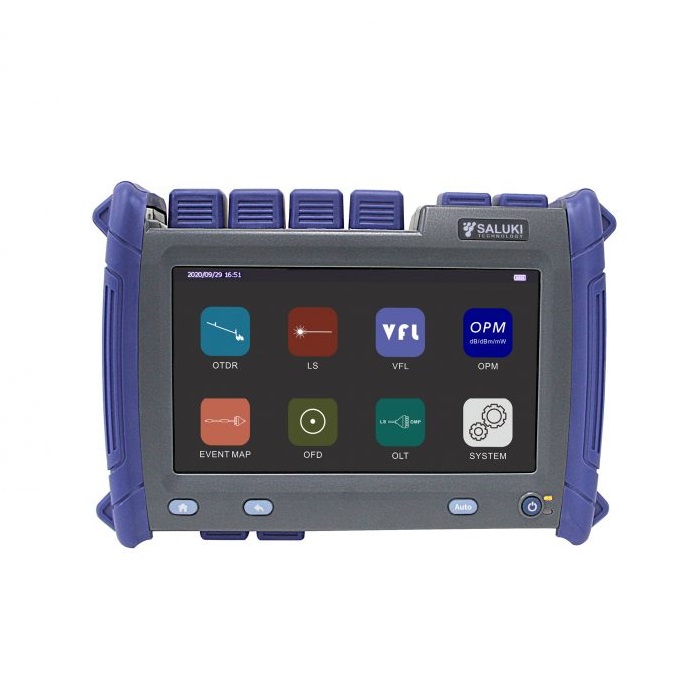

SALUKI S2106X-SM1 Optical Time Domain Reflectometer (850/1300/1310/1550 nm, 26/28/35/33 dB, SM/MM)

1.OTDR

Wavelength: 850/1300/1310/1550 nm

Dynamic Range: 26/28/35/33 dB

Event Blind Zone: 1m

Attenuation Blind Zone: 6m

Display Resolution: 0.01dB

Test Range: 0.5km/1km/2km/4km/8km/16km/32km/64km/128km/256km

Pulse Width: 3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1µs/3µs/5µs/8µs/10µs/20µs

Sampling Point: 16k – 256k

Sampling Resolution: 0.05m – 16m

Loss Accuracy: ± 0.05dB/dB

Loss Resolution: 0.001dB

Reflection Accuracy:± 3dB

IOR: 1.0 – 2.0

Loss Analysis: 4-point method / 5-point method

File Format: SOR (standard format), PDF (analysis software)

Optical Interface:FC/UPC (Interchangeable SC, ST)

Laser Safety Level: Class II

Refresh Rate: 3Hz (typ.)

2. OPM

Wavelength Range: 800nm – 1700nm

Measurement Range: -50dBm to +26dBm

Uncertainty: ± 5%

Connector: Universal joint FC/SC/ST

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

3. LS

Wavelength: Consistent with OTDR output wavelength

Output Power: ≥ -5dBm

Stability: CW, ±0.5dB/15min

Laser Source: FP-LD

Connector: FC/UPC (Interchangeable SC, ST)

4. VFL

Wavelength: 650nm ± 20nm

Output Power: ≥ 10mW (standard)

Mode: CW/1Hz/2Hz

Connector: FC/UPC (Interchangeable SC, ST)

Display: 7 inch color LCD capacitive touch screen, English interface

Data Storage: Internal: 8GB, External: 4GB

Data Interface: 2 USB ports, Mini USB, 10M/100M Ethernet

Battery: 7.4V / 5200mAh Lithium battery, max. 20 hours working time

Power Supply: AC /DC Adapter 100V-240V, 50/60Hz, 0.6A

Dimension: 227 (W) × 160 (H) × 70 (D) mm

Weight: ≤ 1.2kg
