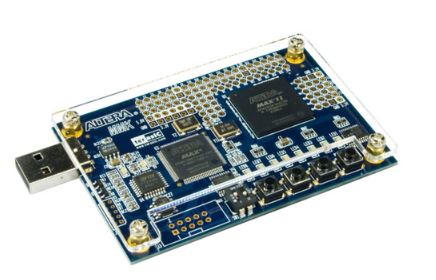

Terasic MAX II Micro Kit

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

 Altera MAX® II EPM2210F324 FPGA device
USB Blaster (on board) for programming;
4 pushbutton switches
2 red user LEDs
2 yellow user LEDs
2 green user LEDs
2 blue user LEDs
50-MHz oscillator for clock sources
Powered by a USB cable (Type-A-Male to Type-A-Female)
MAX II Micro can be used as a USB Blaster, and programming mode supported depends on the configuration device of Altera board connected to MAX II Micro (Only JTAG programming mode is supported to configure MAX II Micro).

Chi tiết


A complete digital design lab at your fingertips! Equipped with an Altera MAX® II EPM2210F324C3 device and on-board USB Blaster circuit, the MAX II Micro Kit provides users the best and largest CPLD design resource. MAX II Micro board can also be used as a USB Blaster cable (JTAG mode programming only) by leveraging its on-board USB Blaster circuit.
